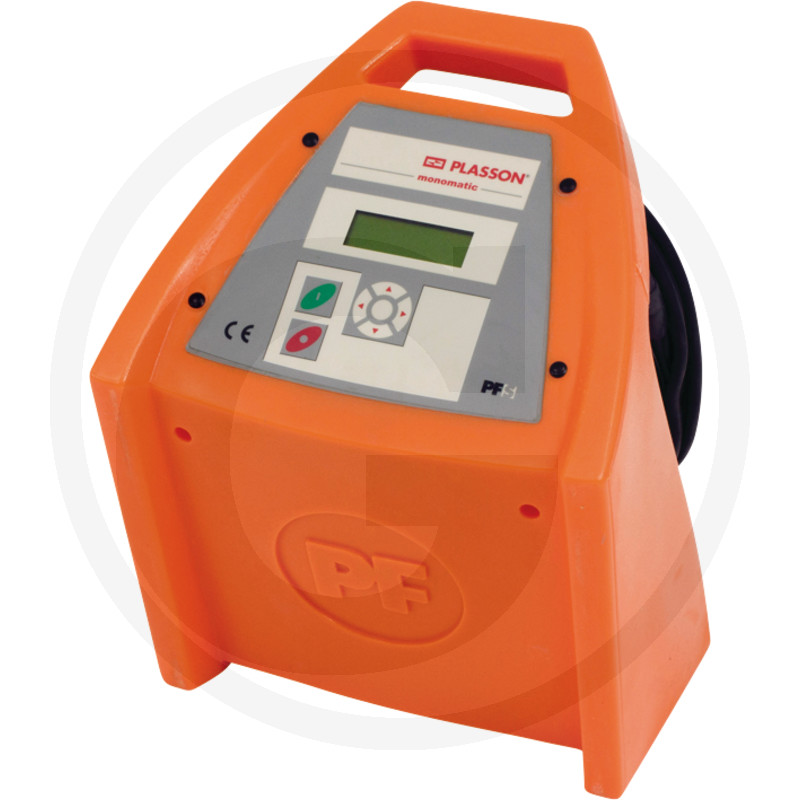

PLASSON Electric welder

Further information

Description:

• System welding machine
• SmartFuse mode
• Welding monitoring system
• Stable impact-resistant plastic body
• Input voltage: 230V (190-300 V)
• Input frequency / current: 50/60 Hz (40-70 Hz) 16 A
• Output voltage / current: 40 V / 60 A (max. 80 A)
• Power: 3200 VA
• Device safety: CE, IP54
• Weight: 18 kg
• Temperature range: -10 °C to +50 °C
• Power cable: 4.5 m
• Welding cable: 4.7 m
• Display: backlit / alphanumeric / 4 lines, 20 characters each Dimensions (L x W x H): 440 x 320 x 340 mm
• Welding parameters: SmartFuse
• Functions: electrical values / current curve for SmartFuse fittings / welding time / system check / working temperature
• Error messages: information in plain text on the display / continuous warning tone
• Scope of delivery: device / welding cable / operating instructions / transport box
