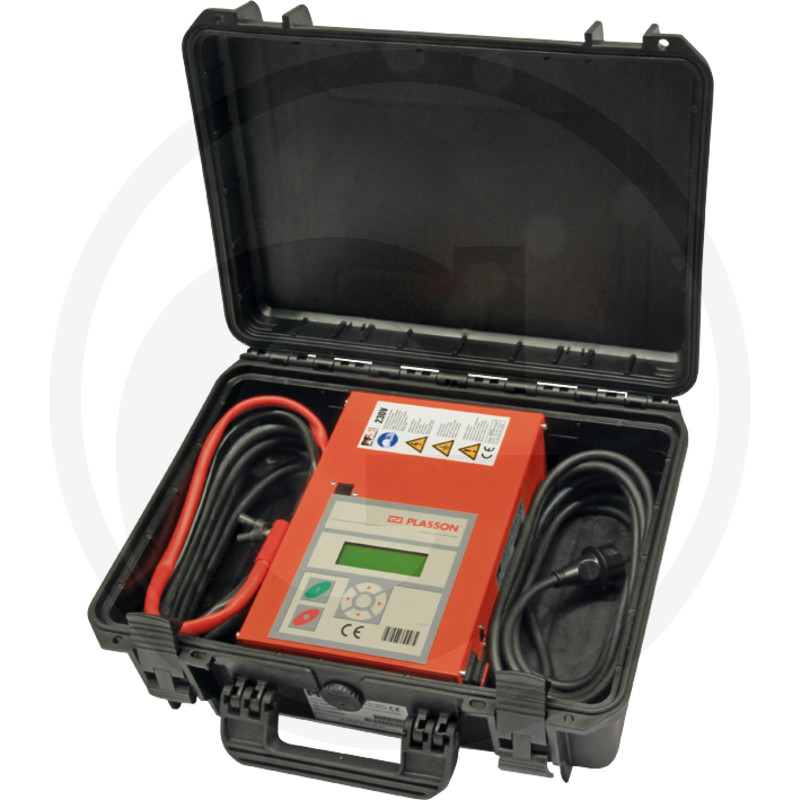

PLASSON Electric welder

Further information

Description:

• Compact system welding machine
• For SmartFuse fittings and saddles up to d 160 mm
• SmartFuse mode
• Welding monitoring system
• Device firmly integrated in the transport case
• Input voltage: 230V (190-300 V)
• Input frequency / current: 50 Hz (40-70 Hz) / 16 A
• Output voltage / current: 40 V / 60% duty cycle (25.6 A) (max. 54 A)
• Power 1200 VA
• Device safety: CE, IP54
• Weight: 11 kg
• Temperature range: -10 °C to +50 °C
• Power cable: 5 m
• Welding cable: 3 m
• Display: backlit / alphanumeric / 4 lines, 20 characters each
• Dimensions (L x W x H): 466 x 176 x 366 mm (transport case)
• Welding parameters: SmartFuse
• Functions: electrical values / current curve for SmartFuse fittings / welding time / system check
• Error messages: information in plain text on the display / continuous warning tone
• Scope of delivery: device integrated in transport case / operating instructions

Weight:

11,00 kg
