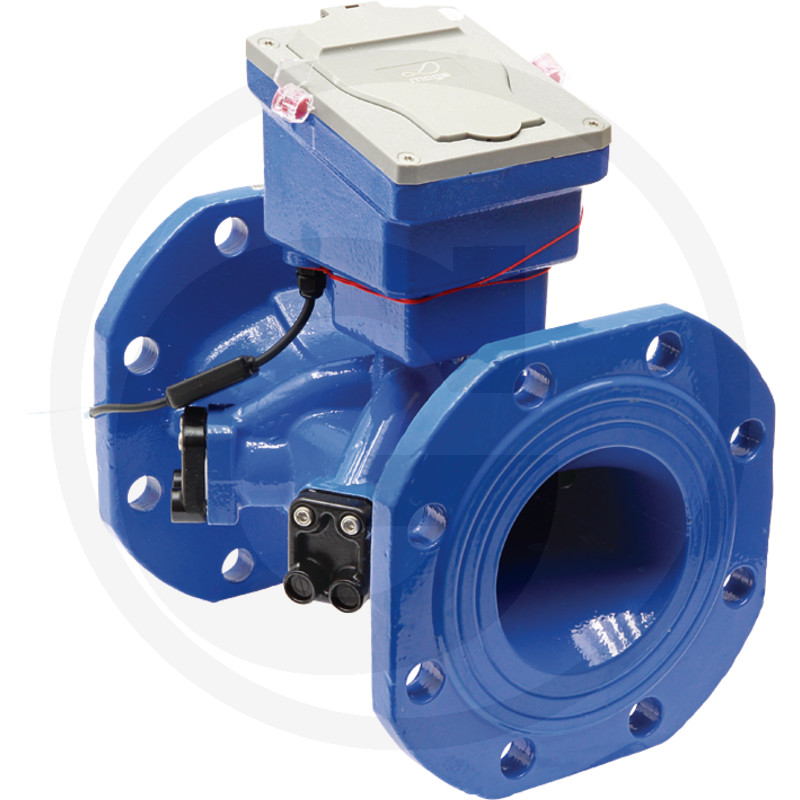

GRANIT Ultrasonic water meter
Part no.: 40504052287
Further information
- DN (mm):
- 100
- PCD (mm):
- 180
- Capacity:
- Qn 100 m³/h
Qmax 125 m³/h - Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 16,25 kg
- EAN codes:
- 4019305657785
- Catalogue:
- Irrigation & sprinkling (p. 391)
- To be found in category:
- Irrigation & sprinklingIrrigation technologyWater meterMega ultrasonic water meter
The ultrasonic meter measures flow, temperature and speed. The data can be read on the water meter’s LCD display and transferred to a PC via a cable. The water meter can also be connected to a WiFi module. The water meter does not have any moving parts, so there is no wear. The flow is measured by sound waves. This allows liquids (clean and dirty) of different viscosities to be measured perfectly. The ultrasonic water meter is operated by a 3.6 V lithium battery that lasts for about 8 years.
connection: DIN flange
Material: cast iron
Colour: blue
Type: class 2
connection: DIN flange
Material: cast iron
Colour: blue
Type: class 2
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
