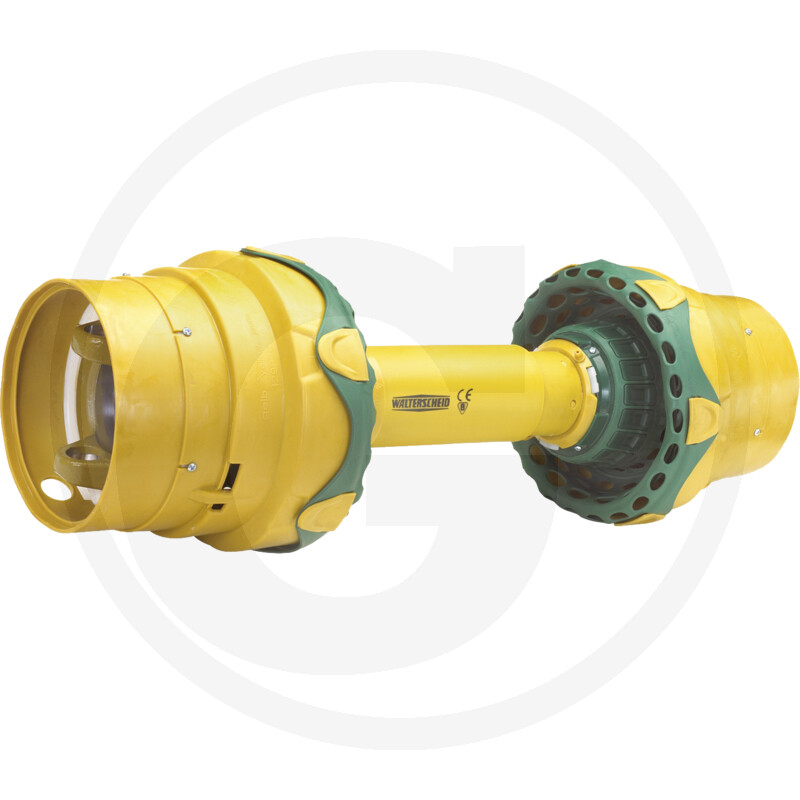

Walterscheid PTO shaft

Further information

Size:

2280

Lz (mm):

1210

A (profile):

Double clevis

B (profile):

Double clevis

Profile pair:

0vGA/1G

Universal joint size A profile (mm):

24 x 61 x 22 x 76

Universal joint size B profile (mm):

24 x 61 x 22 x 76

Lock:

DOPG/DOPG

Implement version:

Double clevis

Tractor version:

Double clevis

Profile:

With lemon profile

Guard version:

SDF 15Z

Max. speed (1/min.):

1000

Type:

WWZ

Locking system:

Without/without

Additional information:

Operating instructions included

bis PS / kW (540 rpm):

27/20

bis PS / kW (max. 1000 rpm):

42/31

Nm (540 rpm):

355

Nm (1000 rpm):

295

Description:

WWZ PTO shafts with wide angle joint at both ends, without connecting clevises

Weight:

17,50 kg

Catalogue:

PTO shafts & drive technology (p. 50)
