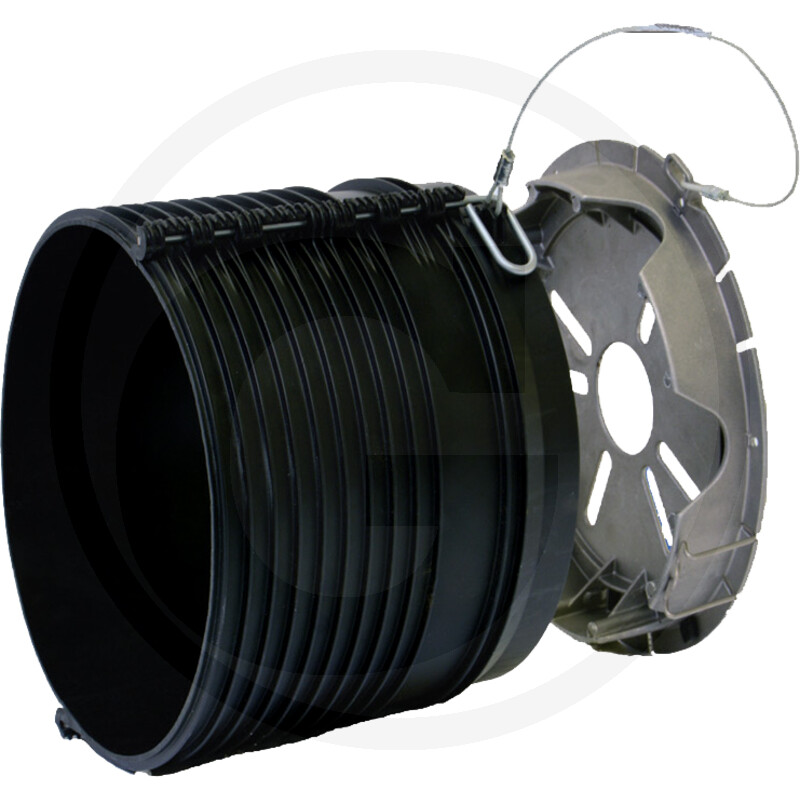

Walterscheid Guard cone

Further information

D (mm):

250

L (mm):

309

Technical data:

Hole patterns for attachment either 4 x 90° or 3 x 120° possible pitch circle diameters from 90 mm to 170 mm, attachment with M10 bolts

Version:

The new Walterscheid Premium guard cones make it much easier to assemble and disassemble PTO shafts and clutches. The Premium guard cone can be removed and opened in just a few quick steps.
The new implement-side guard cone distinguishes itself from existing products with a number of advantages:

> Easy to install
• Automatic 360° locking
• Possibility to mount the guard cone after coupling the GW
> Disassembly-friendly
• Prying open the locking clip pushes the cone away from the transmission plate
> Low requirements for installation space
> Universal hole pattern for almost all applications
> Flexible handling in service cases
• Option 1: if space is generous, the guard cone halves do not have to be opened
• Option 2: in confined spaces, the cone halves are opened for disassembly and assembly of the PTO shaft

Weight:

2,34 kg
