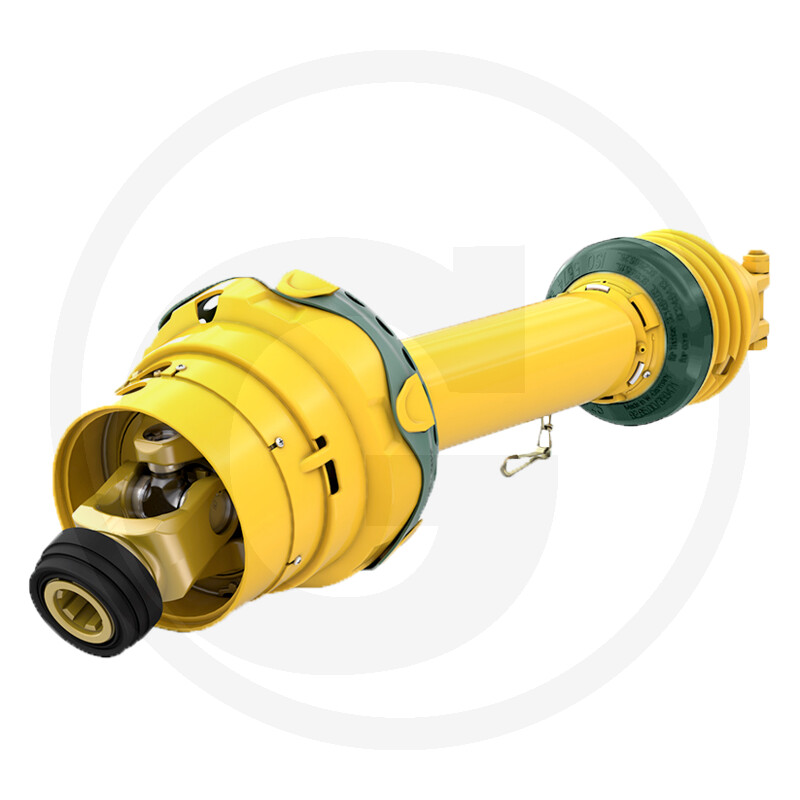

Walterscheid PTO shaft, size: PW675, length: 1010 mm

Further information

Size:

675

Lz (mm):

1010

A (profile):

1 3/4" 20 splines

B (profile):

1 3/4" 6 splines

Profile pair:

S5H/S6H

Universal joint size A profile (mm):

42 x 104 x 36 x 124

Universal joint size B profile (mm):

42 x 104

Lock:

F-KB/QSG

Implement version:

1 3/4" 6 splines

Tractor version:

1 3/4" 20 splines

Profile:

With star profile

Guard version:

SPGF25V

Application:

for large balers

Connection:

overrunning clutch

Max. speed (1/min.):

1000

Type:

PWE

Version:

Implement: overrunning clutch F5/2R

Locking system:

Clamping screw/automatic push-pull lock

Areas of application:

For big balers

Wide angle:

One end

Specification:

PWE 675
with overrunning clutch

Weight:

44,00 kg

Catalogue:

PTO shafts & drive technology (p. 48)

To be found in category:

PTO shafts & drive technologyWalterscheid PTO shafts and replacement partsPTO shaftsWWE PTO shafts - wide angle at one endPWE PTO shafts - wide angle at one end with clutches
