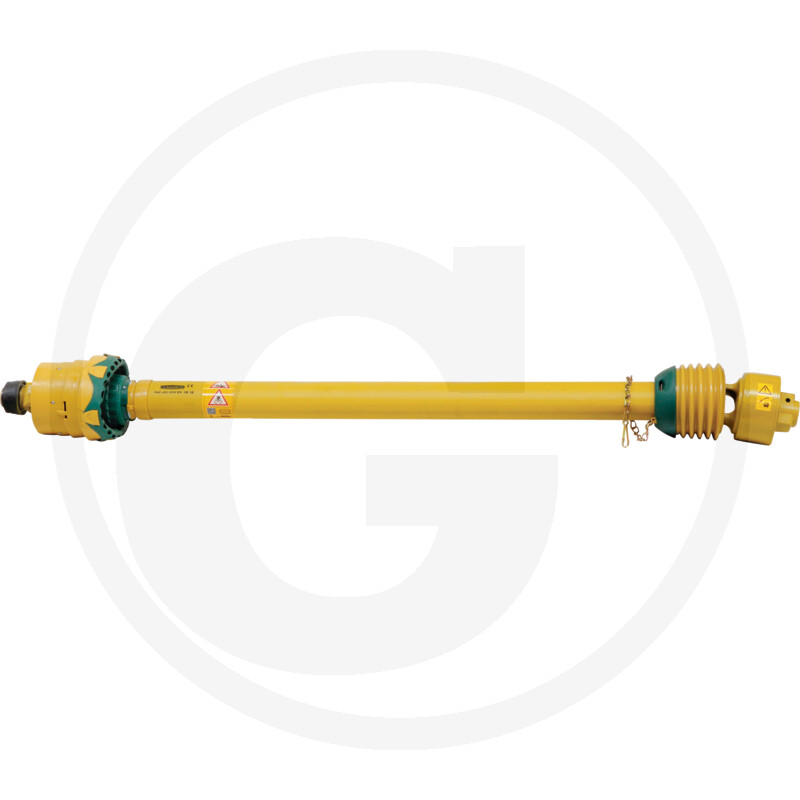

Walterscheid PTO shaft, size: PW580, length: 1410 mm

Further information

Size:

580

Lz (mm):

1410

A (profile):

1 3/8" 6 splines

B (profile):

1 3/4" 6 splines

Profile pair:

S4GA/S5

Universal joint size A profile (mm):

36 x 89 x 32 x 106

Universal joint size B profile (mm):

36 x 89

Lock:

QSG/K-KB

Implement version:

1 3/4" 6 splines

Tractor version:

1 3/8" 6 splines

Profile:

With star profile

Guard version:

SPGF25Z

Torque (Nm):

2100

Application:

for large balers, self-loading wagons

Connection:

Cam-type cut-out clutch

Max. speed (1/min.):

1000

Type:

PWE

Version:

Implement: Cam clutch K68/22R
2100 Nm

Locking system:

Clamping screw/automatic push-pull lock

Areas of application:

For big balers, loading wagons

Wide angle:

One end

Specification:

PWE 580
with cam clutch

Weight:

129,00 kg

Catalogue:

PTO shafts & drive technology (p. 48)
