Walterscheid Base body

Further information

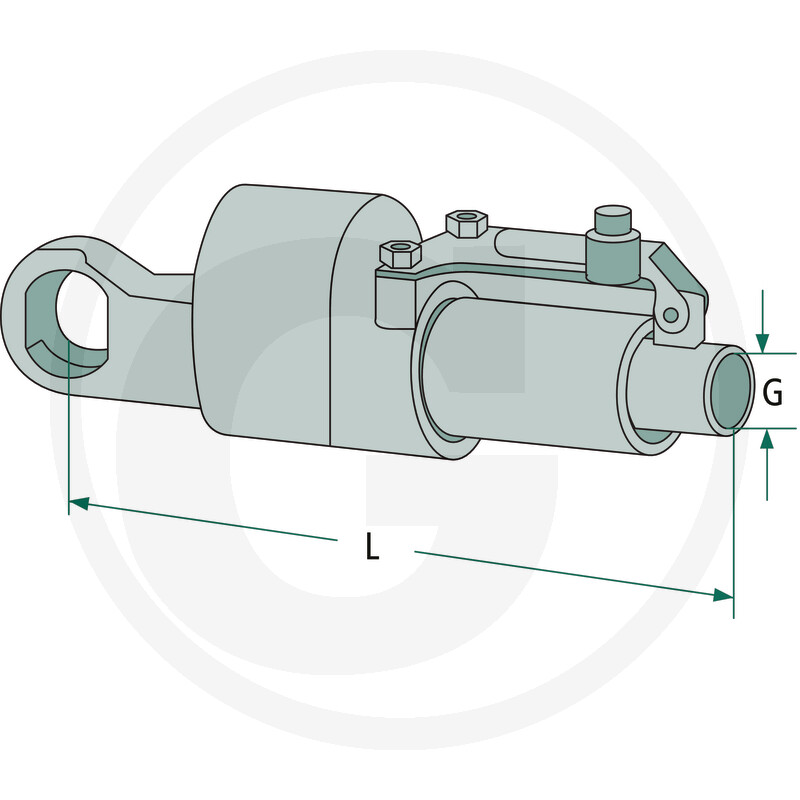

L (mm):

430

G (mm):

M30

Stroke (mm):

19

Description:

Product advantages:
Automatic switching between rigid and floating position when raising and lowering the power lift
Permanent rigid or floating position possible at any time
Convenient control from the tractor seat
Centres actively and stabilises with absolutely no play or jerks
Minimises wear on the three-point linkage and the tyres
Offers maximum safety on slopes and on the road
Simplifies and rationalises work on difficult terrain
Integrated in the tractor’s hydraulic circuit without occupying a control valve

Included in delivery:

1 x stabiliser base body
PLEASE NOTE:
control kit (part number: 395201777), shuttle valve (order no: 395202997) and spacer washers (order no: 395200647) are not included and must be purchased separately if required.

Assembly notes:

Designed for mechanical lower links

Weight:

14,40 kg

To be found in category:

Three-point linkage parts & lifting unitLifting unit replacement partsWalterscheid hydraulic stabilisersBase bodyHGST
