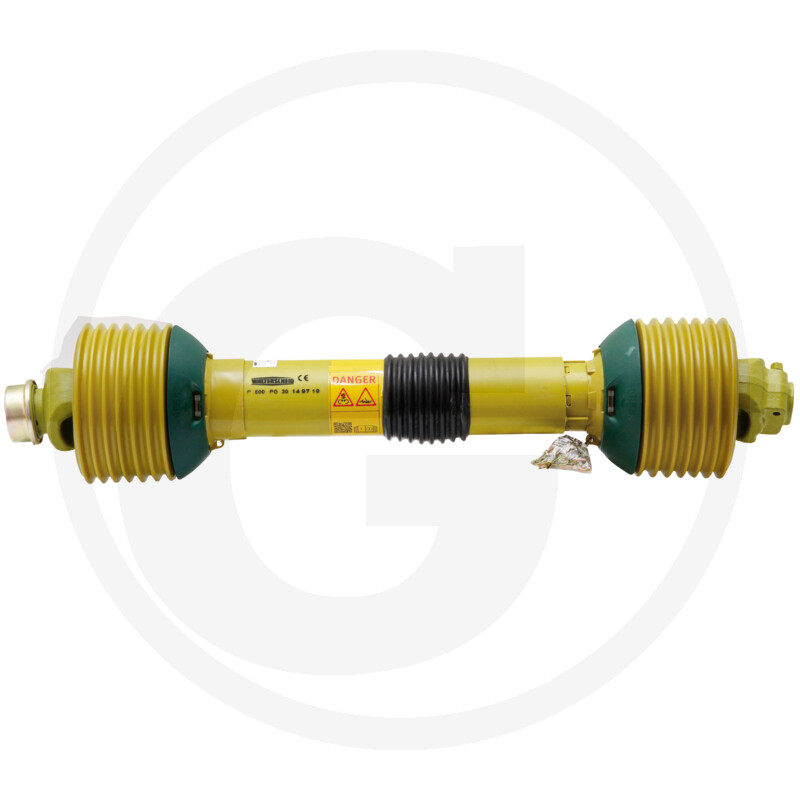

Walterscheid PTO shaft, size: P600, length: 810 mm

Further information

Size:

600

Lz (mm):

810

A (profile):

1 3/8" 21 splines

B (profile):

1 3/4" 20 splines

Profile pair:

S5H/S6

Universal joint size A profile (mm):

42 x 104

Universal joint size B profile (mm):

42 x 104

Lock:

AGCC/ASG

Implement version:

1 3/4” 20 splines

Tractor version:

1 3/8" 21 splines

Series:

P 600

Profile:

Star profile

Guard version:

PG30

Max. speed (1/min.):

540

Type:

P

Version:

Implement: quick-disconnect yoke with clamping taper bolt
Tractor: ASG quick-disconnect yoke

Locking system:

Clamping taper bolt/push-pull lock

Additional information:

Operating instructions included

PS/kW (1000/540 rpm):

122 / 79

Weight:

31,10 kg

Service-Center form:

Click here
