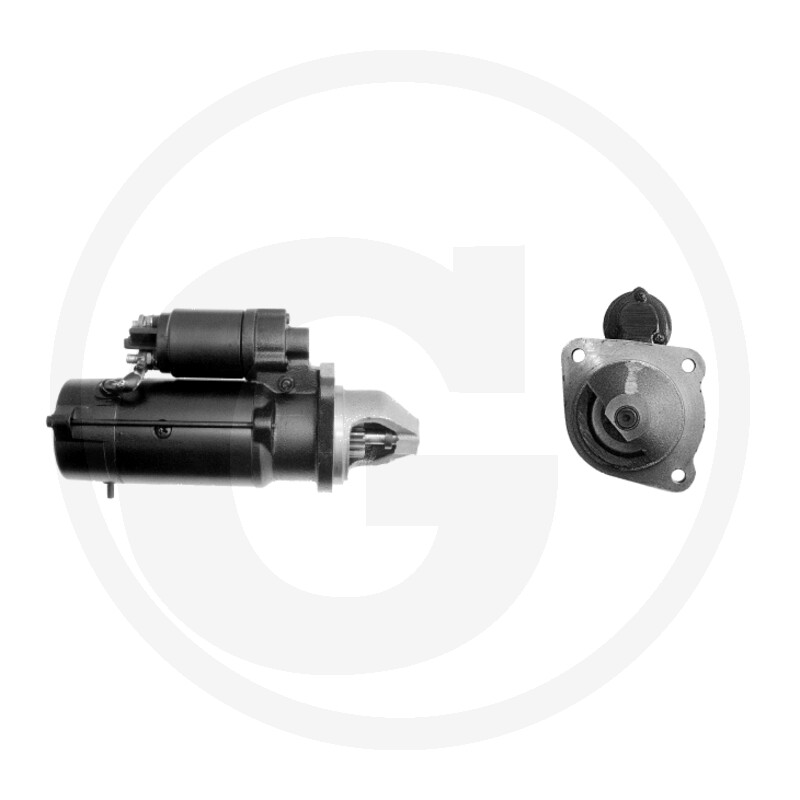

MAHLE Gear reduction starter 12 V / 4.2 kW

Further information

Nominal voltage (V):

12

Nominal power (kW):

4.2

No. of pinion teeth:

10

Holes / PCD (mm):

3 x 10.9 / 127.0

Spacing flange to flywheel (mm):

30.0

Installation length (mm):

245.0

Fitting Ø (mm):

89.0

Installation angle (°):

r 45

Direction of rotation:

↻

Additional information:

Pin terminal 30 19 mm
1 drain nipple for condensation
With scraper ring on the pinion

Type:

GR

Nominal values (V / kW / teeth):

12 / 4,2 / 10

Weight:

11,02 kg

EAN codes:

3838922057546

Catalogue:

Electrics (p. 12)

To be found in category:

ElectricsStartersMAHLE overviewTransmission starters, 12 V
