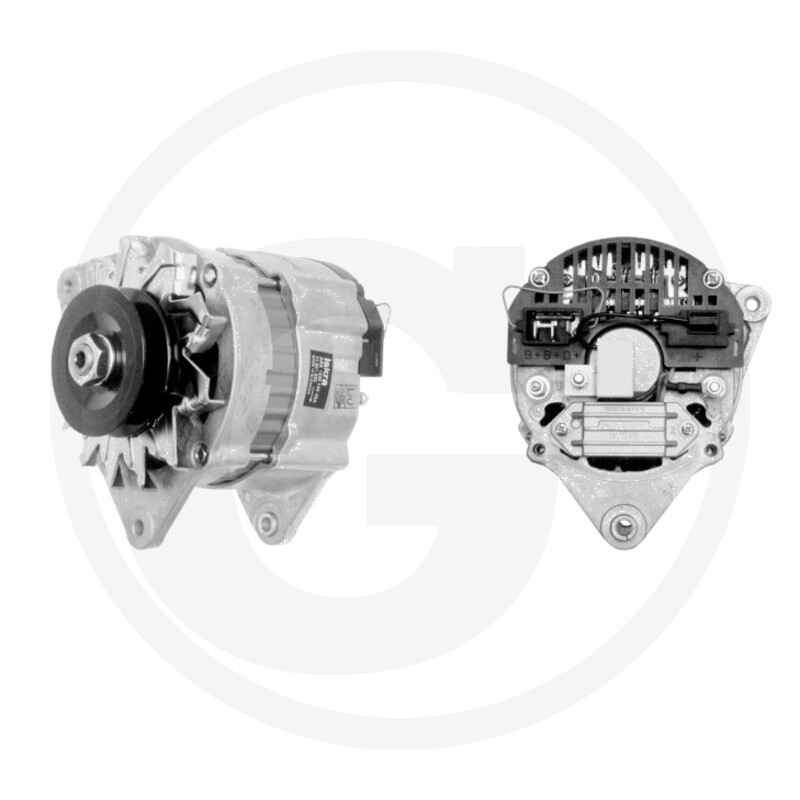

MAHLE Alternator 14 V / 45 A
Part no.: 379IA0505
Further information
- Nominal voltage (V):
- 14
- Charging current (A):
- 45
- Mounting L / d / R (mm):
- 80,0 / 8,2 / 86,0
- Flange size (mm):
- 80,0
- Form:
- A
- Installation angle (°):
- l 60
- Direction of rotation:
- ↻
- Pulley Ø (mm):
- 75,0
- Pulley spacing (mm):
- 35,5
- Belt width (mm) / type:
- 12,7
- Additional information:
- Dust-tight, with combination plug connection
PLEASE NOTE
The battery temperature sensor must be connected, otherwise the alternator will not work! - Mounting hole Ø / R (mm):
- 8,2 / 86,0
- Nominal values (V / A):
- 14 / 45
- Weight:
- 5,04 kg
- EAN codes:
- 3838922054101
- Catalogue:
- Electrics (p. 281)
- To be found in category:
- ElectricsAlternatorsMAHLE overviewAlternators, 14 V
