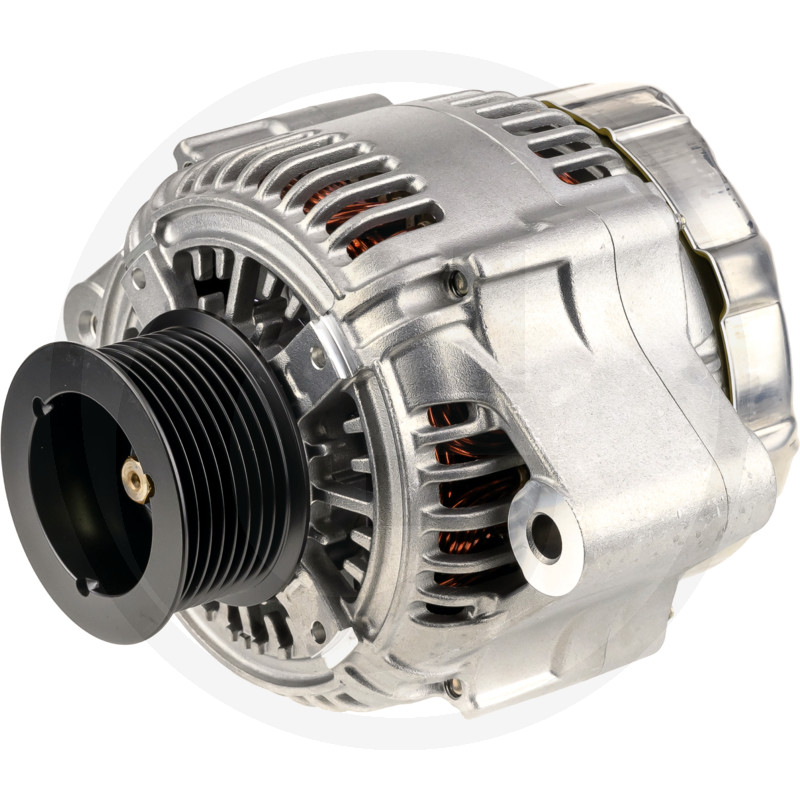

Denso Alternator 28 V / 60 A

Further information

Nominal voltage (V):

28

Charging current (A):

60

Mounting L / d / R (mm):

58,0 / 10,2 / -

Flange size (mm):

58,0

Belt tension hole Ø / R (mm):

10,2 / -

Form:

B

Installation angle (°):

-

Direction of rotation:

-

Pulley Ø (mm):

62.5

Pulley spacing (mm):

32,0

Belt width (mm) / type:

PV x 8

Additional information:

Connections: B+ (M8), PL26

Mounting hole Ø / R (mm):

10,2 / -

Nominal values (V / A):

28 / 60

Weight:

6,69 kg

EAN codes:

8717613113585

Catalogue:

Electrics (p. 310)

To be found in category:

ElectricsAlternatorsDENSO overviewAlternators, 28 V
