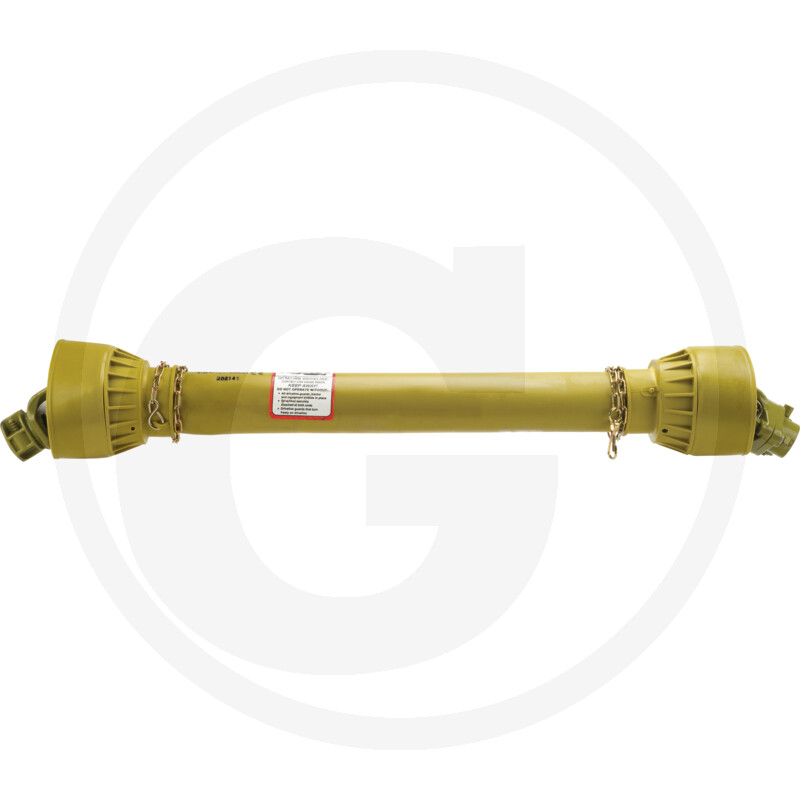

BLUELINE PTO shaft, size: F24, length: 860 mm

Further information

Size:

F24

Lz (mm):

860

A (profile):

1 3/8" 6 splines

B (profile):

1 3/8" 6 splines

Profile pair:

G5/G6

Universal joint size A profile (mm):

32 x 76

Universal joint size B profile (mm):

32 x 76

Locking system:

quick-release pin/clamping bolt

Connection:

Shear bolt coupling

Profile:

With lemon profile

Implement version:

1 3/8" 6 splines

Tractor version:

1 3/8" 6 splines

Series:

F24

Torque (Nm):

2100

Additional information:

Operating instructions included

Weight:

15,50 kg

EAN codes:

4059139425822

To be found in category:

PTO shafts & drive technologyBLUELINE PTO shafts and replacement partsPTO shaftsWith overload clutch
