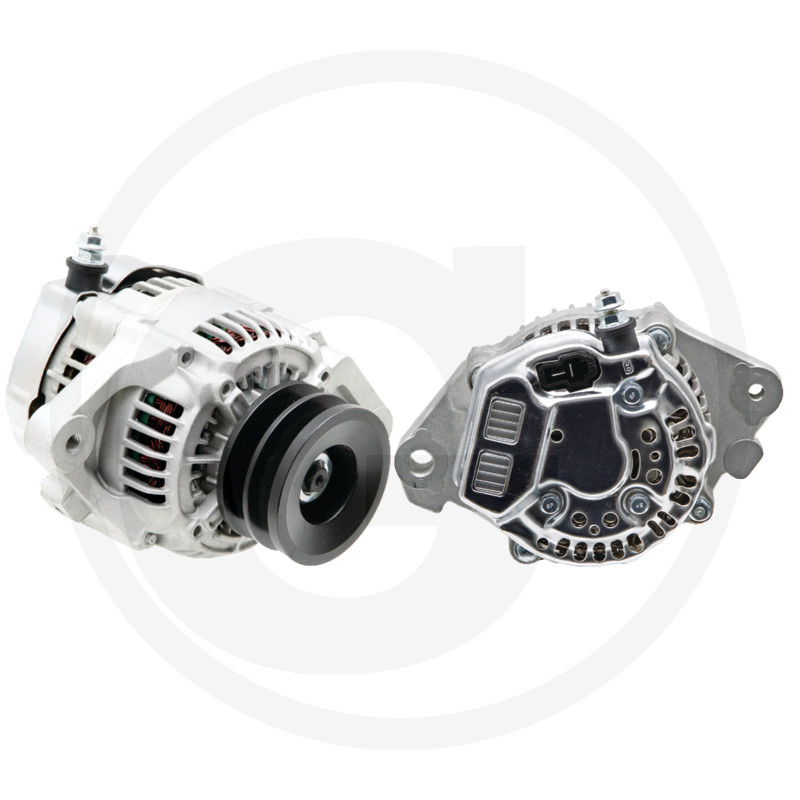

GRANIT Alternator 14 V / 45 A
Compact design, internal fan
Part no.: 37633047
Further information
- Nominal voltage (V):
- 14
- Charging current (A):
- 45
- Mounting L / d / R (mm):
- 24,0 / 10,3 / 77,6
- Flange size (mm):
- 24,0
- Belt tension hole Ø / R (mm):
- M8 / 76,0
- Form:
- B
- Installation angle (°):
- 0
- Direction of rotation:
- ↻
- Pulley Ø (mm):
- 67.0
- Pulley spacing (mm):
- 18,5
- Belt width (mm) / type:
- (2x) 9,7
- Additional information:
- Connections: B+ (M6), internal regulator, double pulley, compact generator
- Mounting hole Ø / R (mm):
- 10,3 / 77,6
- Nominal values (V / A):
- 14 / 45
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 3,67 kg
- Catalogue:
- Electrics (p. 299)
- To be found in category:
- ElectricsAlternatorsGRANIT overviewAlternators, 14 V
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
