BRIGADE VKMS Basic Set 1 monitor

Further information

Description:

Accident prevention with front-end camera systems

Road accidents involving agricultural machinery are not uncommon. With the support of the German Federal Ministry of Transport and Digital Infrastructure, the German Agricultural Society (DLG) is committed to reducing accidents.
The focus of accident prevention is monitoring cross traffic, which requires an insight into the blind spots at the front of large vehicles. Many blind spots occur due to the significant distance between the driver and the front of the vehicle, or due to the numerous attachments fitted. Leaving a blind junction with such a large vehicle is incredibly dangerous and the cause of numerous accidents.
Due to the equipment obstructing the view on both sides, the driver has to drive 3.5 metres into the road before they can see other vehicles.

Nationwide regulation
After an intensive research phase, the German Federal Ministry of Transport and Digital Infrastructure has stipulated in the published guidelines that vehicles must be equipped with a camera monitor system when an attachment is used.
A camera system is also mandatory if the distance from the centre of the steering wheel to the front of the vehicle is 3.5 metres or more.
This regulation was introduced because most accidents are caused by drivers not being able to see the front of their vehicle when manoeuvring, using a front-mounted implement or leaving a blind junction.

A technical aid is required when carrying a front-mounted implement, or when the distance from the centre of the steering wheel to the front edge of the implement or to the front end of the vehicle is more than 3.5 metres.

Not authorised for use in Switzerland

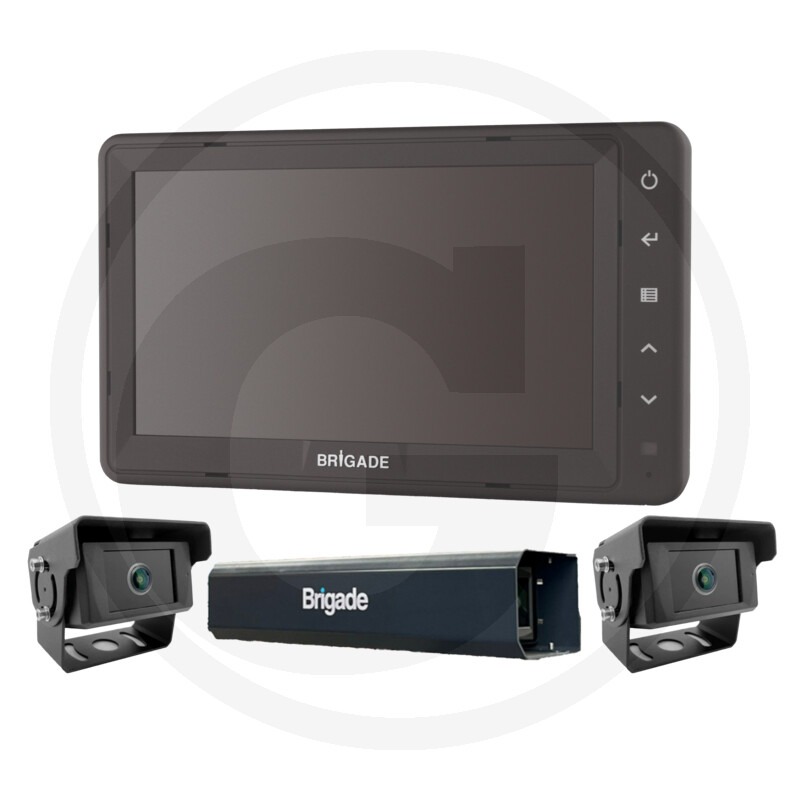

Included in delivery:

1x 7-inch AHD split screen monitor
2x AI front camera
1x camera housing including holder
Further components for warning sound reproduction and adaptor included in the package.

Technical data:

Camera:
12-24 V
Viewing angle: horizontal 52°, vertical 30°
AI detection range:
Front: covers the Class 6 range
Rear: up to 11 m (depending on the camera mounting height)
IP69K
Dimensions (WxHxD): 97.5×75.3×72 mm

Version:

Front-end camera monitor system from Brigade with AI

Tested by the DLG in accordance with Part A & Part B
Camera:
high resolution AHD 1080P
Detects and warns the driver when there are people in the front and rear blind spots
Detected persons are displayed in coloured boxes on the camera image
Image processing and overlay of detected persons directly from the camera unit
Plug-and-play: the AI camera is connected directly to the Brigade monitor and/or the optional internal buzzer
Brigade Select series connector
Compatible with all Brigade HD monitors and MDR recorders
Alarm trigger output: 12 V
260 mA @12 V, 140 mA @24 V imaging
Operating voltage: 12-24 V
TV system: 25 fps
CMOS 1/2.9" 2M pixel sensor


Monitor:
AHD- and CVBS-compatible
High resolution, high contrast, wide viewing angle
Views can be configured
4 camera inputs
5 auto triggers
Mirroring / normal switching from the menu
Key lock to prevent tampering
Distance markers on the screen
Audio
Sun visor
Automatic dimmer
Multilingual menus
Automatic switching AHD 1.0 / AHD 2.0 / PAL / NTSC
LED backlight (service life of 20,000 hours)
Anti-glare screen
Resolution: 1024 x 600, contrast ratio: 700:1, brightness: 600 cd/m2
Viewing angle: side 85° x top 85° x bottom 85°
Power consumption: 27 W
Current: 2.3 A
Dimensions (W x H x D): 196 x 118 x 26 mm

Weight:

7,36 kg
