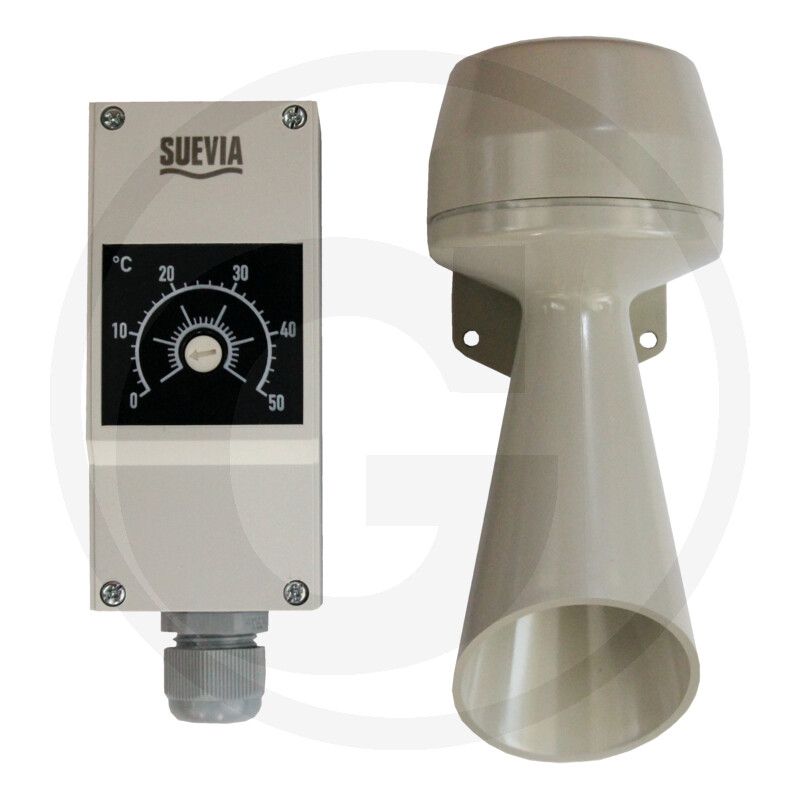

Warning system for ring pipes
Part no.: 330SU1010308
Further information
- EAN codes:
- 4025338077049
• For keeping water frost-free in insulated ring pipes (¾" or 1") with a length of max. 350 m
• Specially designed for installation in stables with an outdoor climate for cattle, horses, pigs or sheep. Animals are reliably supplied with water even at sub-zero temperatures.
• The heater model 312 is equipped with 6000 W (two heating elements 400 V, 2x 3000 W) and a high-performance circulation pump with stainless steel base (230 V, 400 W).
• The housing is made of high-quality enamelled cast iron
• The device is pre-assembled on a base plate. With 1" water connections.
• With return temperature control: The desired return temperature of the water is set on the return sensor, which is mounted on the return line. If the return temperature falls below the set value, the heating elements are automatically switched on.
• The heating elements have built-in overheating protection (STB).
• Includes a vent valve, pressure relief valve, check valve and non-return flap
• Two 30 mA residual current circuit breakers must be provided on site. These serve to protect the pump and heating elements separately.
• Specially designed for installation in stables with an outdoor climate for cattle, horses, pigs or sheep. Animals are reliably supplied with water even at sub-zero temperatures.
• The heater model 312 is equipped with 6000 W (two heating elements 400 V, 2x 3000 W) and a high-performance circulation pump with stainless steel base (230 V, 400 W).
• The housing is made of high-quality enamelled cast iron
• The device is pre-assembled on a base plate. With 1" water connections.
• With return temperature control: The desired return temperature of the water is set on the return sensor, which is mounted on the return line. If the return temperature falls below the set value, the heating elements are automatically switched on.
• The heating elements have built-in overheating protection (STB).
• Includes a vent valve, pressure relief valve, check valve and non-return flap
• Two 30 mA residual current circuit breakers must be provided on site. These serve to protect the pump and heating elements separately.
