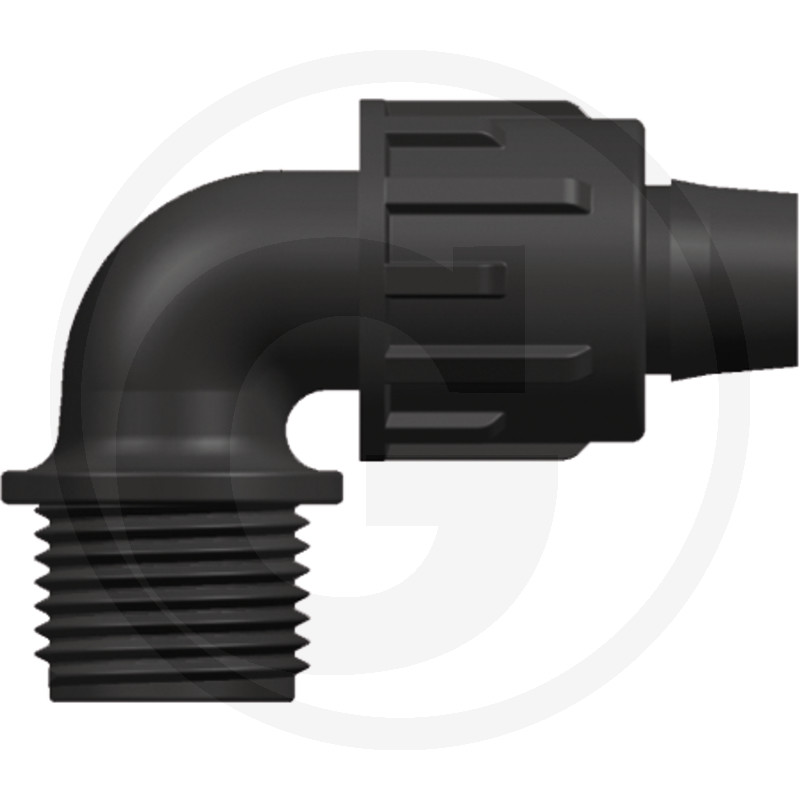

GRANIT Angled pipe fitting
Part no.: 26070980
Further information
- Connection:
- 16 x 3/4"
- Operating pressure max. (bar):
- 4
- Material:
- PP-B polypropylene copolymer
- Version:
- 90°
1x male thread - Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 6 g
- EAN codes:
- 5291098034786
- Catalogue:
- Irrigation & sprinkling (p. 1575)
Area of application:
For irrigation and for transporting water at low pressure
Range:
drip line connection from Ø 16 mm to Ø 20 mm
Threaded connection from Ø 1/2" to Ø 3/4"
Operating pressure:
4 bar at 20 °C
Material:
Polypropylene copolymer PP-B
The fittings are suitable for use in the drinking water supply. They have good chemical resistance and are also suitable for contact with sunlight.
For irrigation and for transporting water at low pressure
Range:
drip line connection from Ø 16 mm to Ø 20 mm
Threaded connection from Ø 1/2" to Ø 3/4"
Operating pressure:
4 bar at 20 °C
Material:
Polypropylene copolymer PP-B
The fittings are suitable for use in the drinking water supply. They have good chemical resistance and are also suitable for contact with sunlight.
• 1x male thread
