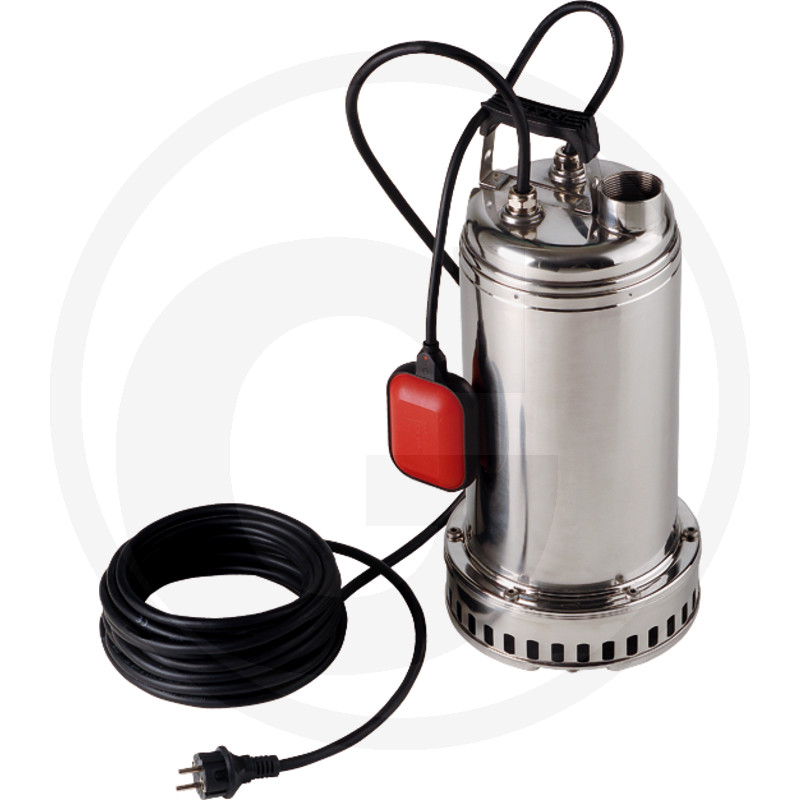

DAB Drainage pump
DRENAG 1000 M-A
Part no.: 26070340
Further information
- Flow rate max. (l/h):
- 23500
- Delivery height max. (m):
- 15,3
- Immersion depth max. (m):
- 10
- Grain size (mm):
- 10
- Intake temperature max.:
- 35°C
- Connection:
- 1 1/2"
- Engine:
- 230V / 50 Hz - 1000 W
- Cable length (m):
- 10
- Protection class:
- IP 68
- Weight:
- 17,51 kg
- EAN codes:
- 8019203277456
- To be found in category:
- Irrigation technologyPumpsDAB pumps for household water supplyDrainage pumps
Suitable for pumping rainwater, groundwater, sandy water from construction sites and clean wastewater (not abrasive). Automatic operation with a float switch
Motor unit:
• Dry asynchronous motor
• Cooled by liquid running along the outer surface of the motor housing
• Rotor is mounted on permanently lubricated, oversized ball bearings, which guarantee quiet running and a long service life
• Built-in thermal and voltage protection switch and permanently activated capacitor
Pump unit:
• Pump housing, impeller, motor flange, filter and disc, motor housing, handle and cover of the cable compartment made of stainless steel
• Handle with rubber insulation
• Rotor shaft extension made of stainless steel
• Double mechanical seal with intermediate oil chamber made of carbon / aluminium oxide on the motor side and silicon carbide / silicon carbide on the pump side
Motor unit:
• Dry asynchronous motor
• Cooled by liquid running along the outer surface of the motor housing
• Rotor is mounted on permanently lubricated, oversized ball bearings, which guarantee quiet running and a long service life
• Built-in thermal and voltage protection switch and permanently activated capacitor
Pump unit:
• Pump housing, impeller, motor flange, filter and disc, motor housing, handle and cover of the cable compartment made of stainless steel
• Handle with rubber insulation
• Rotor shaft extension made of stainless steel
• Double mechanical seal with intermediate oil chamber made of carbon / aluminium oxide on the motor side and silicon carbide / silicon carbide on the pump side
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
