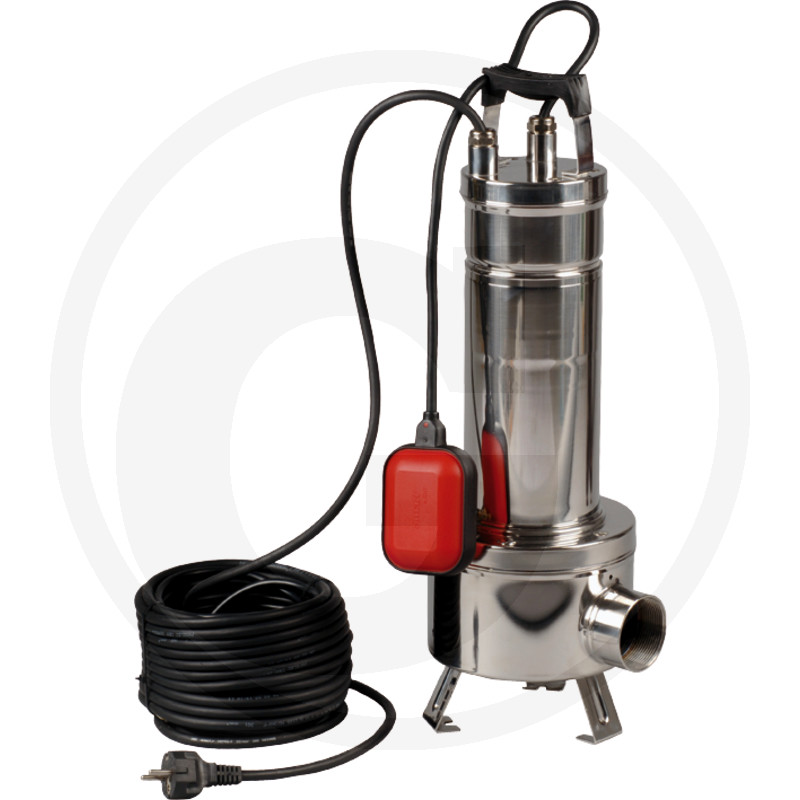

DAB Wastewater pump

Further information

Flow rate max. (l/h):

24000

Delivery height max. (m):

9,6

Immersion depth max. (m):

10

Grain size (mm):

50

Intake temperature max.:

35°C

Connection:

2"

Engine:

230V / 50 Hz - 750 W

Cable length (m):

10

Protection class:

IP 68

Equipment:

Pump unit:
• Pump body, seal retaining cover, motor housing and protective housing with handle made of stainless steel
• Handle with insulating rubber coating
• Motor shaft made of stainless steel AISI 316
• Double mechanical seal with intermediate oil chamber
• Made of carbon/ceramic on the motor side and carborundum/carborundum on the pump side

Motor unit:
• Dry-running, sealed asynchronous motor, cooled by the pumped liquid
• Rotor mounted with permanently lubricated and oversized ball bearings to ensure quiet running and a long service life
• Thermal and voltage protection as standard
• Capacitor permanently switched on

Weight:

13,71 kg

EAN codes:

8019203946376

Catalogue:

Irrigation technology (p. 1560)
