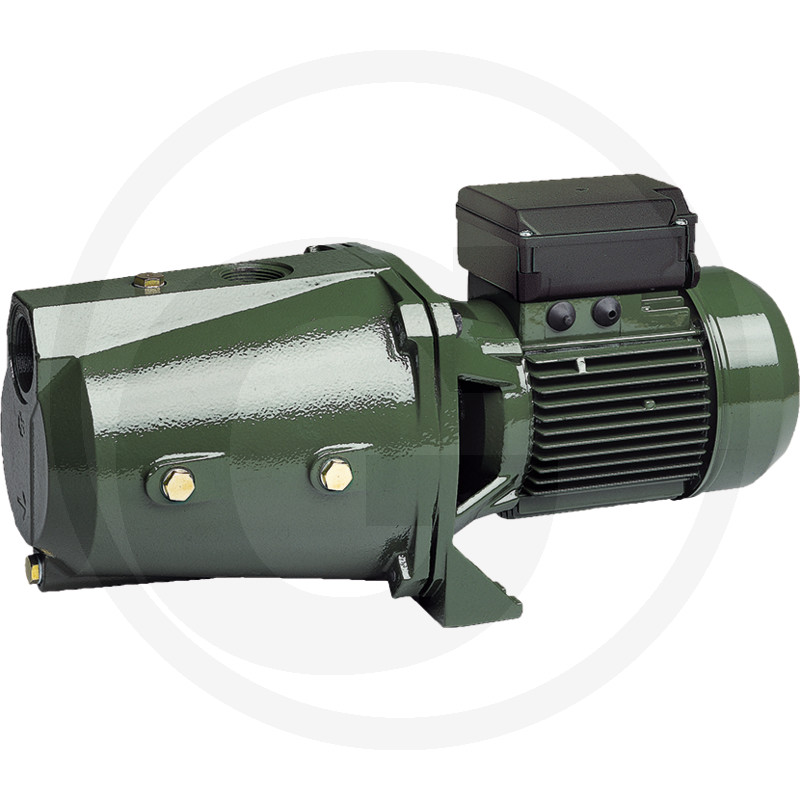

DAB Centrifugal pump
Jet 300T
Part no.: 26070331
Further information
- Flow rate max. (l/h):
- 10500
- Delivery height max. (m):
- 51
- Max. suction height (m):
- 8
- Pressure max. (bar):
- 6
- Intake temperature max.:
- 35°C
- Connection:
- 1 1/4" suction side
1" pressure side - Engine:
- 400V / 50 Hz - 2200 W
- Cable length (m):
- -
- Version:
- Cast iron pump housing
- Weight:
- 29,70 kg
- EAN codes:
- 8059893131980
- Catalogue:
- Irrigation technology (p. 1562)
- To be found in category:
- Irrigation technologyPumpsDAB pumps for household water supplyCentrifugal pumps
Self-priming centrifugal pump with optimum suction capacity even with air bubbles present.
Particularly suitable for self-installation for supplying water in domestic installations, on smaller farms, for horticulture, and wherever self-priming is required.
The liquid to be pumped should be clean, free of solids and abrasive particles, and chemically neutral. It should not be viscous, abrasive or crystallised.
Installation: fixed in horizontal position
Motor unit:
• Closed asynchronous motor with external cooling
• Motor lantern made of cast iron
To protect the three-phase motor, we recommend using a motor protection switch
Pump unit:
• Impeller, diffuser, Venturi tube and sand guard made of technopolymer
• Scraper rings made of stainless steel
• Mechanical seal made of carbon / ceramic
• Pump housing made of cast iron
Particularly suitable for self-installation for supplying water in domestic installations, on smaller farms, for horticulture, and wherever self-priming is required.
The liquid to be pumped should be clean, free of solids and abrasive particles, and chemically neutral. It should not be viscous, abrasive or crystallised.
Installation: fixed in horizontal position
Motor unit:
• Closed asynchronous motor with external cooling
• Motor lantern made of cast iron
To protect the three-phase motor, we recommend using a motor protection switch
Pump unit:
• Impeller, diffuser, Venturi tube and sand guard made of technopolymer
• Scraper rings made of stainless steel
• Mechanical seal made of carbon / ceramic
• Pump housing made of cast iron
