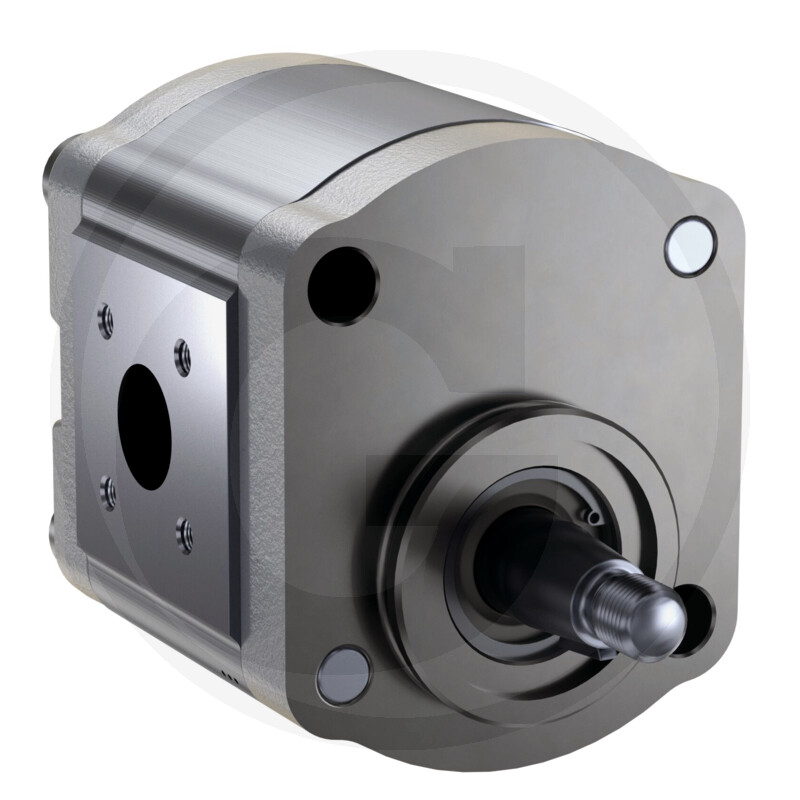

Bosch/Rexroth Hydraulic pump

Further information

Drive shaft:

Taper 1:5, Ø 17 x 17

Output volume (cc/rev):

22,5

Fitting Ø (mm):

50

Operating pressure max. (bar):

210

Direction of rotation:

Left

Min. speed (1/min.):

500

Max. speed (1/min.):

2500

Line connection suction side:

Ø 40 mm, 4 holes, M6

Line connection pressure side:

Ø 35mm, 4 holes, M6

Seal material:

WD= FKM / NBR

Weight:

3,63 kg

Catalogue:

Hydraulics - Centralised lubrication - Compressed air technology (p. 374)

To be found in category:

Hydraulics - Centralised lubrication - Compressed air technologyHydraulicsPumps and motorsTo fit AtlasGear pumps
