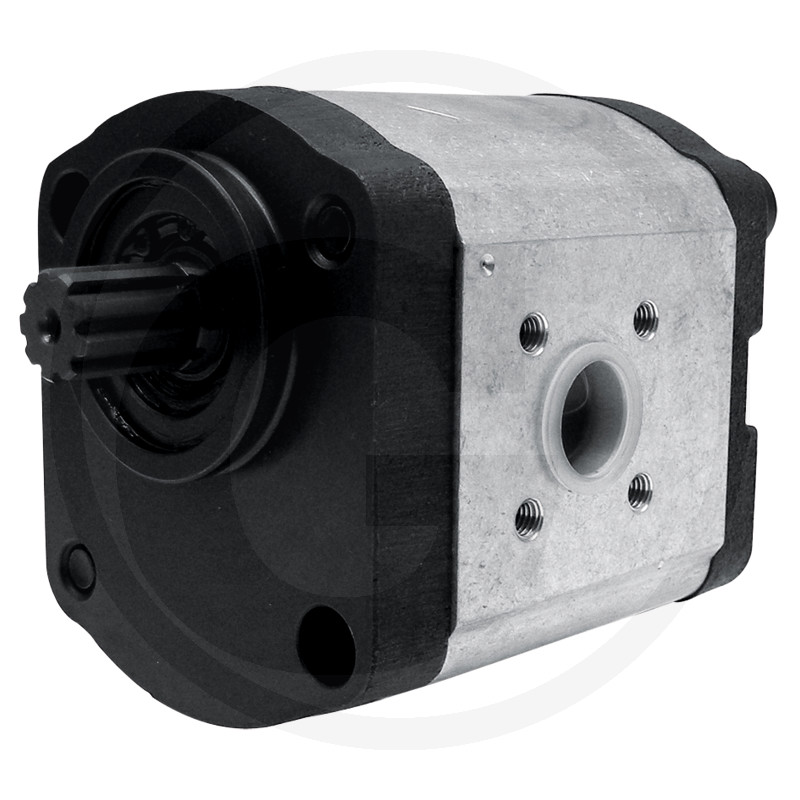

Bosch/Rexroth Hydraulic pump

Further information

Output volume (cc/rev):

16

Drive shaft:

Splined shaft 17 x 14 9 splines

Operating pressure max. (bar):

250

Direction of rotation:

Anticlockwise

Min. speed (1/min.):

500

Max. speed (1/min.):

3000

Line connection suction side:

Ø 40 mm, 4-hole, M6

Line connection pressure side:

Ø 35 mm, 4-hole, M6

Capacity Q (cc/rev):

16

Adaptor plate hole pattern (mm):

60 x 60 (2 x)

Fitting Ø (mm):

50

Seal material:

NBR

Types:

Dorado 66, 76, 86, Dorado³ 60, 70, 80, 90, 100 HI-Line, Dorado F 70, 75, 90, 100, Dorado S 70, 75, 90, 100, Dorado V 70, 75, 90, 100, Explorer 75 New, Explorer 85, 95, Explorer³ 85, 100E, 115E, 105, Frutetto³ 80, 90, 100, 110, Frutetto³ S 80, 90, 90.3, 100, 110, Frutetto³ V 80, 90, 90.3, 100, 110, Iron 130, 130S, 140S, 150, 150S, 150.7, 165S, 165.7, Iron 130 DCR, 140 DCR, 140 DCR 4V, 160 DCR, 160 DCR 4V, 175 DCR, 185 DCR, Iron 150 Continuo DCR, 170 DCR, 190 DCR, Iron 130 HI - Line, 150 HI - Line, 150.7 HI - Line, 165.7 HI - Line, 180.7 HI - Line, Iron 140 HI - Line DCR, 140 HI - Line DCR 4V, 160 HI - Line DCR, 160 HI - Line DCR 4V, 175 HI - Line DCR, 185 HI - Line DCR, Silver 80, 90, 100.4, 100.6, 85, 95, 105, 110, 115, 130, Silver³ 100, 110, 100 Continuo, 110 Continuo, Virtus J 100, 110, 120

Weight:

3,09 kg

Fig. no.:

8

To be found in category:

Tractor hydraulicsHydraulic pumpsSame
