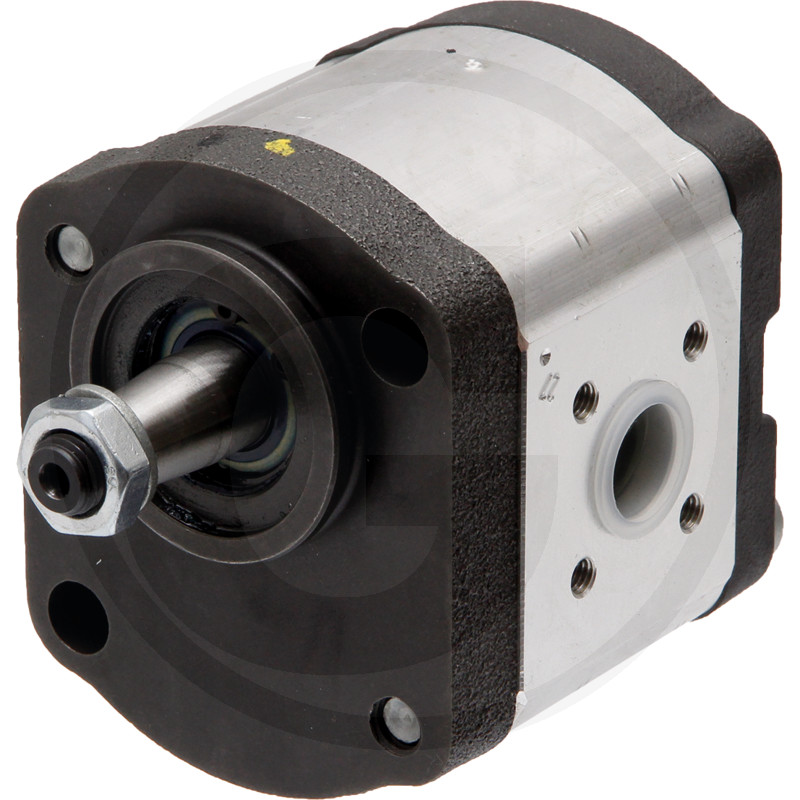

Bosch/Rexroth Hydraulic pump
With power steering, anticlockwise rotating, if necessary shorten the shaft to avoid damage to the water tank.
Part no.: 2560510515310
Further information
- Output volume (cc/rev):
- 11
- Drive shaft:
- Taper 1:5, Ø 17 x 17
- Operating pressure max. (bar):
- 250
- Direction of rotation:
- Anticlockwise
- Min. speed (1/min.):
- 500
- Max. speed (1/min.):
- 3500
- Line connection suction side:
- Ø 40 mm, 4-hole, M6
- Line connection pressure side:
- Ø 35 mm, 4-hole, M6
- Bosch no.:
- 0510515310
- Capacity Q (cc/rev):
- 11
- Adaptor plate hole pattern (mm):
- 60 x 60 (2 x)
- Fitting Ø (mm):
- 50
- Seal material:
- NBR
- Types:
- 353, 383, 423, 433, 453, 523, 533, 624, 654, 724, 733, 824, 644, 744, 844 S, 745, 743
- Weight:
- 2,88 kg
- Fig. no.:
- 3
- To be found in category:
- Tractor hydraulicsHydraulic pumpsCase IH
