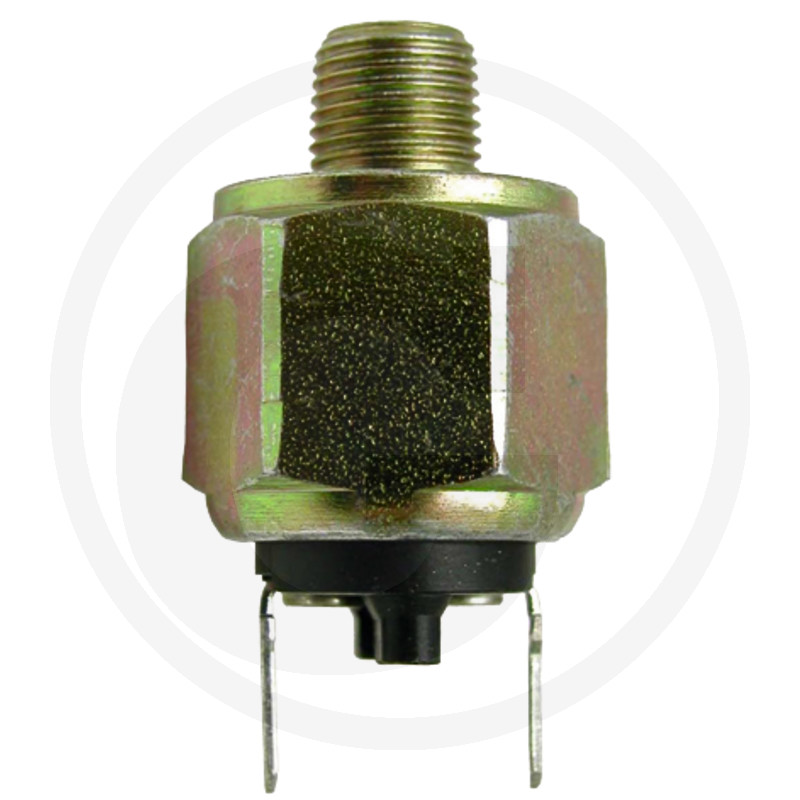

BOSCH Brake light switch

Further information

Types:

920, 1120, 2020, 2120, 3020, 4020, 4520, 4620, 830, 930, 1030, 1130, 1630, 2030, 2130, 3130, 4230, 4430, 4630, 840, 940, 1040, 1140, 1640, 1840, 2040, 2040S, 2140, 3040, 3140, 3640, 4040, 4040S, 4240, 4440, 4640, 4840, 1350, 1550, 1750, 1850, 1950, 2250, 2450, 2650, 2850, 3050, 3150, 3350, 3650, 4050, 4250, 4350, 4450, 4650, 4850, 4055, 4255, 4455, 4755, 4955
Combines: 925, 932, 935, 942, 945, 952, 955, 965, 975, 985, 1032, 1042, 1052, 1065, 1072, 1075, 1085, 1133, 1144, 1155, 1157, 1158, C 670, CTS, CTS II, S 560, 690, STS 9880, T 550, 560, 660, 670, W 540, 550, 650, 660
Forage harvesters: 5720, 5820, 5730, 5830, 7200, 7300, 7400, 7500, 7700, 7800, 7250, 7350, 7450, 7550, 7750, 7850, 7950

Version:

Thread 1/8", tapered,
3.0 - 6.0 bar,
normally off, make contact

Switching pressure range over-pressure (bar):

3 - 6

Connection 2-pin:

Blade terminal

Fixing:

Screw-in thread: 1/8" x27 NPTF, SAE short

Weight:

54 g

EAN codes:

3165141917475

Catalogue:

Electrics (p. 1396)

To be found in category:

ElectricsSensorsApplication listsJohn Deere
