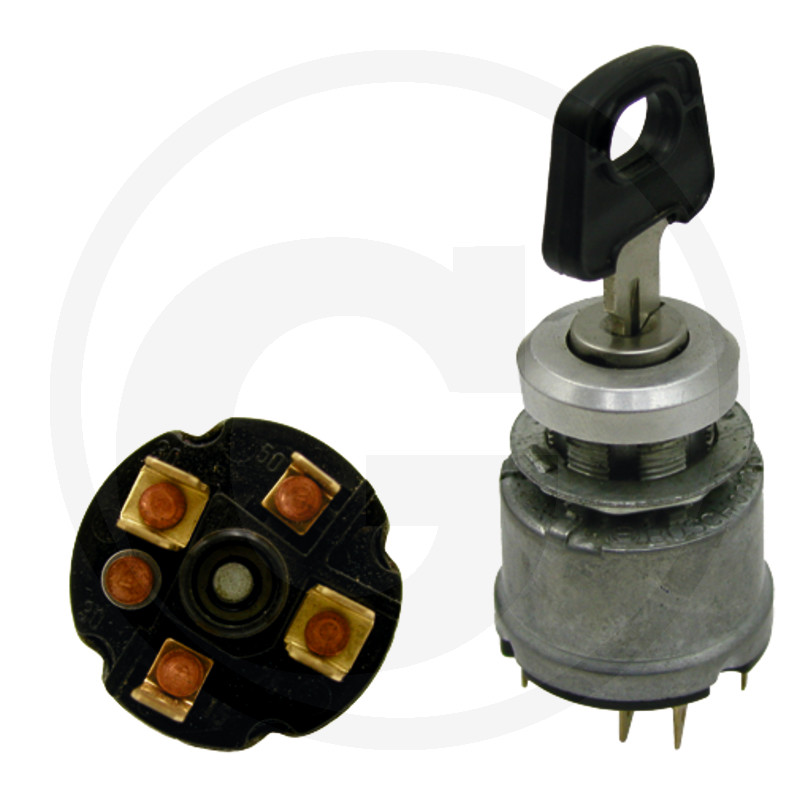

BOSCH Start switches

Further information

Version:

With 2 keys, safety lock, without start repeat interlock, key can only be removed in "Off" position Key nickel-plated, lock no. K10 Flat terminals, load: 150 W, terminals 15, 75 / 9.5 A 12 V, terminal 50, 4.5 A 24 V terminal 50 Switch positions:
R= Radio
O= Off
1= On
2= Start Installation opening: Ø 22.5 mm, up to wall thickness 7 mm.

Connection:

6x cable lug 6.3 mm

Mounting Ø (mm):

22

Total length (mm):

56

To fit:

MAN

To fit as models:

F9

Switching stages:

4

Locking number:

K10

Anti-restart:

Yes

Spare key:

2503341982209

Weight:

132 g

EAN codes:

3165142023731

Catalogue:

Electrics (p. 1291)

To be found in category:

ElectricsSwitches/controlsIgnition/start switches
