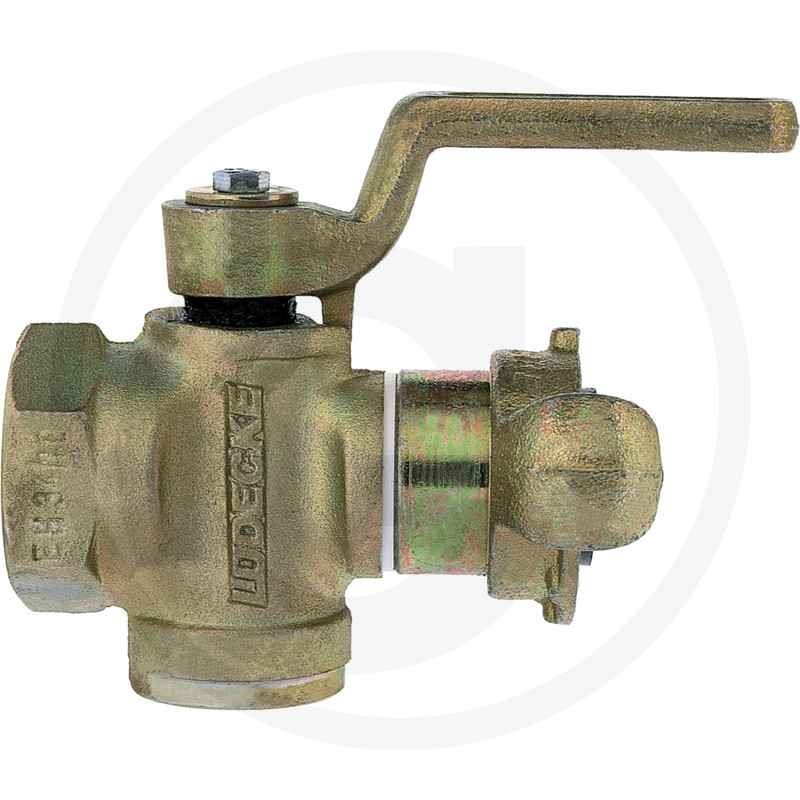

LÜDECKE Single valve
Part no.: 23915BAL306
Further information
- Operating pressure max. (bar):
- 10
- Through hole Ø (mm):
- 17
- Version:
- Rigid claw coupling
- Inlet connection:
- G 3/4 i
- Outlet:
- 1x claw coupling
- Material:
- Housing, lever: malleable cast iron galvanised and yellow passivated (chrome VI-free)
- Weight:
- 828 g
• For compressed air supply to compressors, hose lines and hammers on construction sites
• Robust valves made of malleable cast iron
• Galvanised and yellow passivated (chrome VI-free)
• With brass plug and malleable cast iron lever
• Self-sealing: under pressure the plug (tapered) is pressed against the housing and the valve is sealed, meaning that there is no seal wear
• With threaded connections or claw couplings with rubber or brass seal
• When switching off, pressure is reduced by venting the outlet side, making safe uncoupling possible
• Robust valves made of malleable cast iron
• Galvanised and yellow passivated (chrome VI-free)
• With brass plug and malleable cast iron lever
• Self-sealing: under pressure the plug (tapered) is pressed against the housing and the valve is sealed, meaning that there is no seal wear
• With threaded connections or claw couplings with rubber or brass seal
• When switching off, pressure is reduced by venting the outlet side, making safe uncoupling possible
