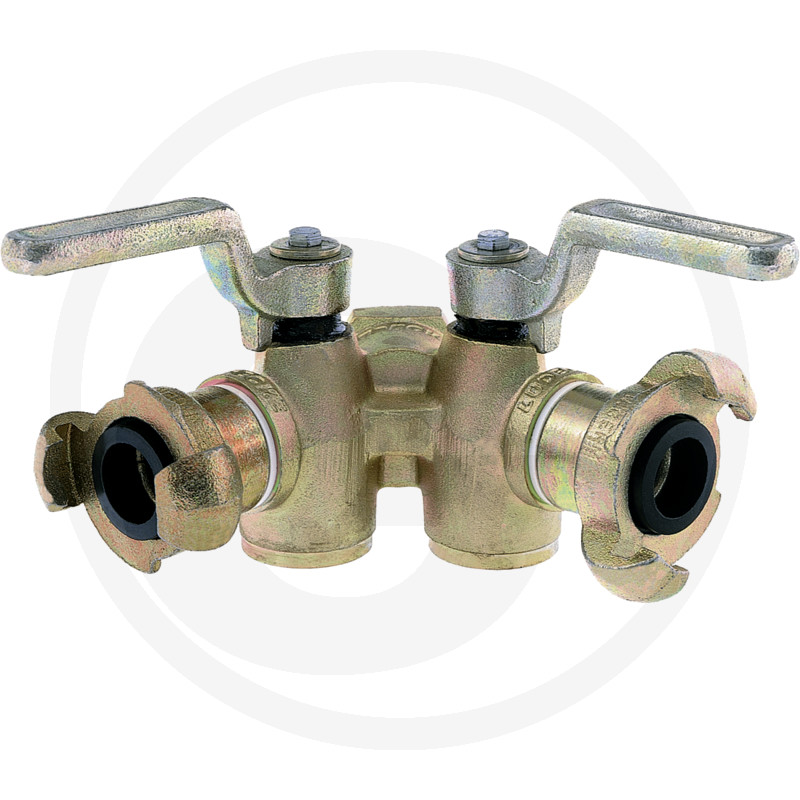

LÜDECKE Double valve
Part no.: 23915BAL301
Further information
- Operating pressure max. (bar):
- 10
- Through hole Ø (mm):
- 17
- Version:
- Without coupling
- Inlet connection:
- G 1 i
- Outlet connection:
- 2x G 3/4 a
- Material:
- Housing, lever: malleable cast iron galvanised and yellow passivated (chrome VI-free)
- Weight:
- 1,21 kg
• For compressed air supply to compressors, hose lines and hammers on construction sites
• Robust valves made of malleable cast iron
• Galvanised and yellow passivated (chrome VI-free)
• With brass plug and malleable cast iron lever
• Self-sealing: under pressure the plug (tapered) is pressed against the housing and the valve is sealed, meaning that there is no seal wear
• With threaded connections or claw couplings with rubber or brass seal
• When switching off, pressure is reduced by venting the outlet side, making safe uncoupling possible
• Robust valves made of malleable cast iron
• Galvanised and yellow passivated (chrome VI-free)
• With brass plug and malleable cast iron lever
• Self-sealing: under pressure the plug (tapered) is pressed against the housing and the valve is sealed, meaning that there is no seal wear
• With threaded connections or claw couplings with rubber or brass seal
• When switching off, pressure is reduced by venting the outlet side, making safe uncoupling possible
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
