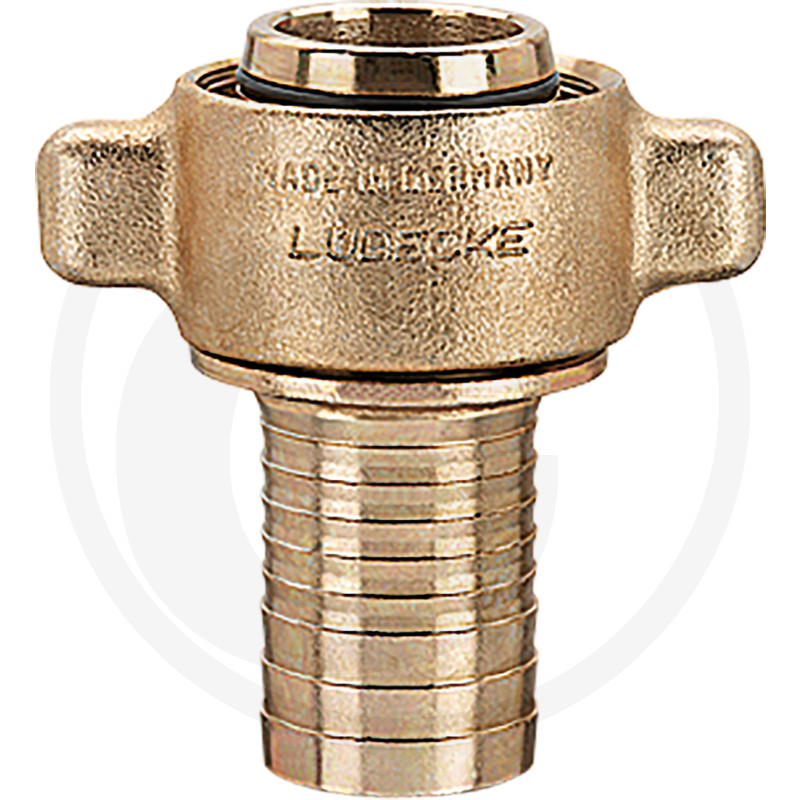

LÜDECKE Complete threaded fitting
Part no.: 23915BAL1028
Further information
- Operating pressure max. (bar):
- 16
- Connection thread:
- 3/4” female thread
- Through hole Ø (mm):
- 13
- Hose connection (mm):
- 19
- Length (mm):
- 80
- Width (mm):
- 58
- Weight:
- 196 g
• According to DIN 8537/20 033 with hose connector
• Tapered screw connection made of steel/malleable cast iron galvanised and yellow passivated (chrome VI-free)
• Consisting of union nut and tapered connector
• Complete screw connections with safety collar and twisted connector for a perfect hose fit
• Tapered connectors with 1:3 taper generally with additional O-ring seals
• For compressed air, water, etc. in construction, mining and tunnelling
• Tapered screw connection made of steel/malleable cast iron galvanised and yellow passivated (chrome VI-free)
• Consisting of union nut and tapered connector
• Complete screw connections with safety collar and twisted connector for a perfect hose fit
• Tapered connectors with 1:3 taper generally with additional O-ring seals
• For compressed air, water, etc. in construction, mining and tunnelling
