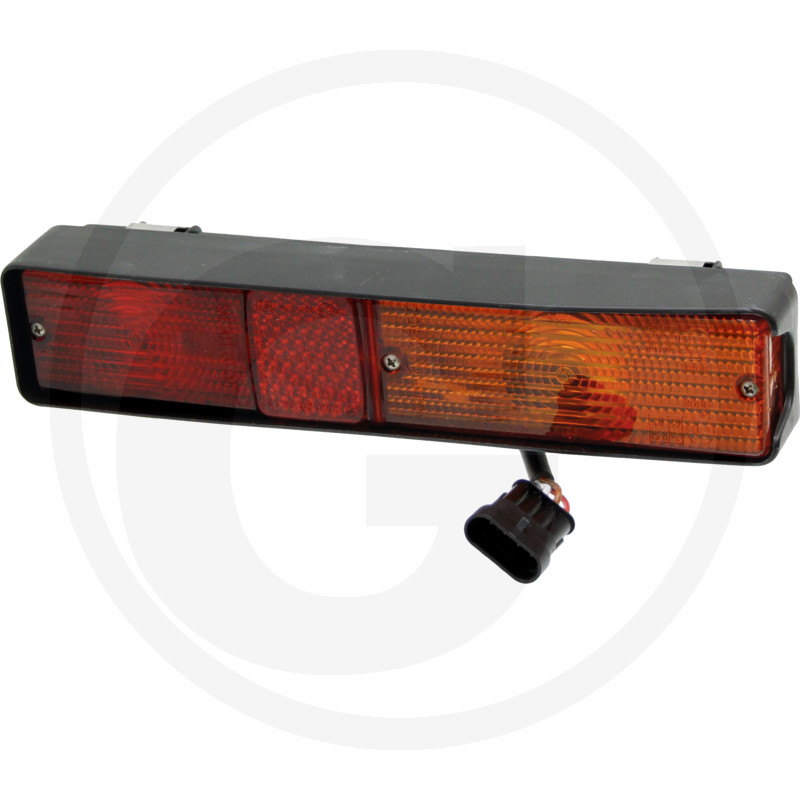

Cobo Rear light
Part no.: 22702735000
Further information
- Types:
- Ares 60RX/RZ, 610/616RX/RZ, 620RX/RZ, 620/626RX/RZ, 540RX, 550RX, 540/546RX/RZ, 550/556RX/RZ, 550/566RX/RZ, 710RZ, 720RX, 630RX/RZ, 640RZ, 656RZ, 715/816RZ, 725/826RZ, 735/836RZ, 815RZ, FPS, 825/826RZ, FPS, 915RZ, 925/926RZ, 935/936RZ, 547ATX-ATZ, 557ATX-ATZ, 567ATX-ATZ, 577ATX-ATZ, 617ATZ, 657ATZ, 697ATZ
- Bulb:
- 12V21WK / P21W
12V21/5WK / P21/5W - Connection:
- 4-way plug-in coupling
- Width (mm):
- 300
- Form:
- Rectangular
- Height (mm):
- 62
- Cable length (m):
- 0.15
- Hole spacing (mm):
- 112
- Dimensions W x H x D (mm):
- 300 x 62 x 63
- Depth (mm):
- 63
- Fixing:
- M5
- Installation location:
- Left/right
- Nominal voltage (V):
- 12
- Cable length (mm):
- 150
- Test mark:
- ECE
- Power consumption (W):
- 21
- Type:
- Bulb
- Light function:
- Indicator light, brake light
- Bulbs included:
- No
- Mounting type:
- Screwed, horizontal mounting
- Weight:
- 414 g
- Catalogue:
- Electrics (p. 698)
