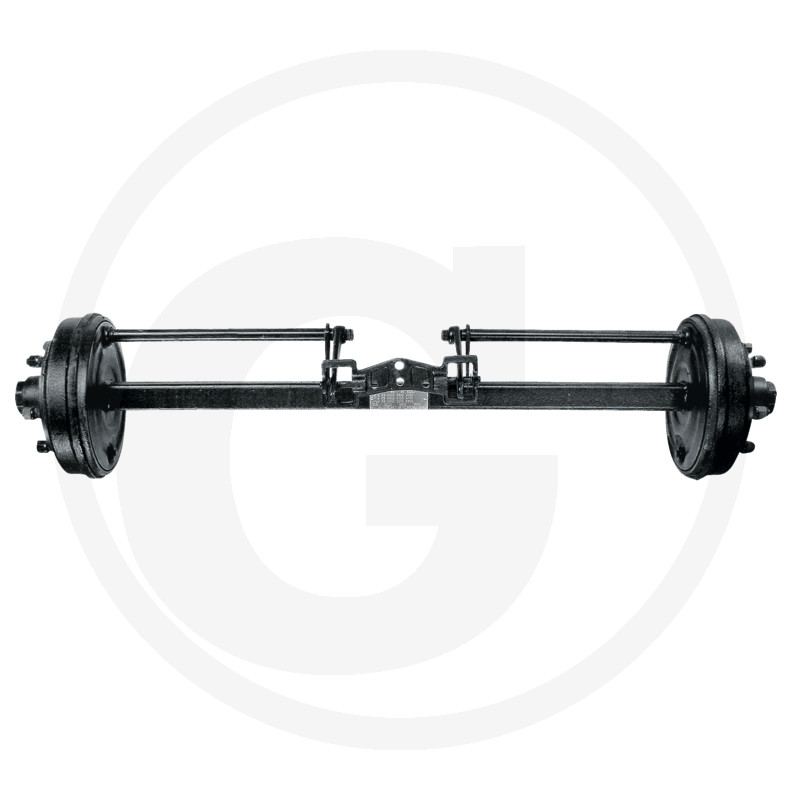

A.D.R Brake axle

Further information

Axle body: B (mm):

□ 55

Track A (mm):

1800

Wheel attachment (wheel bolt/hub/PCD) D Ø C (mm):

5/94/140/M16x1,5

Brake size (mm):

250 x 60

Brake types:

256E

Brake compensation BA:

mittig

Static axle load (kg) / single axle / 15.5 mph:

3900

Static axle load (kg) / twin axle / 15.5 mph:

3300

Static axle load (kg) / tandem / 15.5 mph:

2700

Static axle load (kg) / single axle / 25 mph:

3200

Static axle load (kg) / twin axle / 25 mph:

2700

Static axle load (kg) / tandem / 25 mph:

2400

Static axle load (kg) / single axle / 60 km/h:

2900

Static axle load (kg) / two-axle / 60 km/h:

2400

Static axle load (kg) / tandem / 60 km/h:

2000

Technical axle load (braking load kg) at 25 mph:

3260

Axle type:

JA5DA

Brake lever:

M

Version:

ohne Grundplatte

Drum Ø (mm):

280

Wheel bearing set:

30206 / 30209

Base plate centre GM (mm):

200

Axle plate:

ohne
