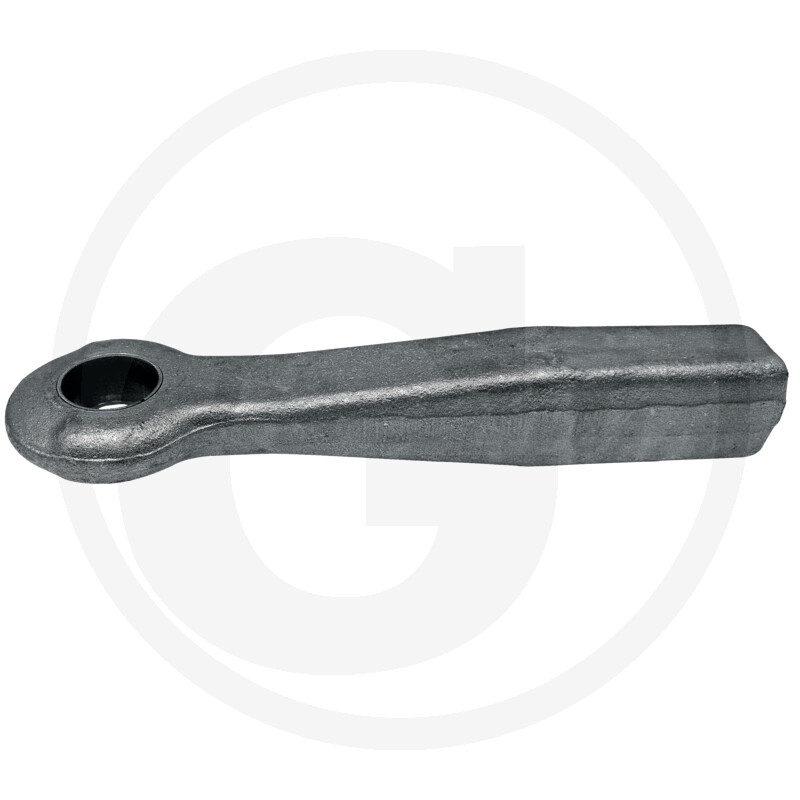

GRANIT Drawbar eye
Solid shaft
Eye Ø 50 mm, according to DIN 74053
Part no.: 22084007
Further information
- Dc-value (kN):
- 86,8
79,5
71,9 - Total length (mm):
- 433
- Length (mm):
- 375
- Shaft:
- Solid shaft
- Shaft cross section W x H (mm):
- 57 x 65
- Load capacity (kg):
- 800
1000
1200 - V-value (kN):
- 29,4
26,0
22,8 - Eye Ø (mm):
- 50
- Description:
- The ring and shaft dimensions of the drawbar eye comply with DIN 74053 (ISO 1102). Advantages: made of forged high-strength material
- D-value (kN):
- bis 190
- Version:
- Weld-in
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 10,70 kg
- Catalogue:
- Trailer hitches (p. 21)
