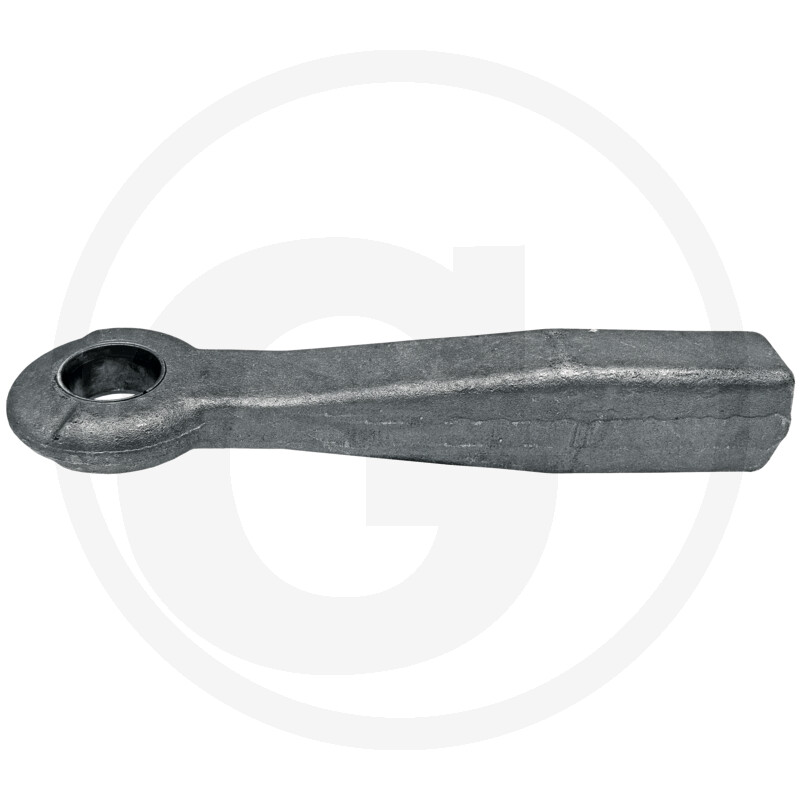

GRANIT Drawbar eye
Eye Ø 40 mm
Part no.: 22084006
Further information
- Total length (mm):
- 390
- Length (mm):
- 335
- Shaft:
- Solid shaft
- Shaft cross section W x H (mm):
- 56 x 65
- Load capacity (kg):
- 1350 up to 25 km/h
1000 over 25 km/h - V-value (kN):
- 30
- Eye Ø (mm):
- 40
- Description:
- The ring and shaft dimensions of the drawbar eye comply with DIN 74054 (ISO 8755). The areas of application include use on agricultural or forestry trailers. Advantages: made of forged high-strength material
- D-value (kN):
- max. 125 kN
(Mehrachsanhänger) - Version:
- Weld-in
- Approval:
- M 2939
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 7,31 kg
- Catalogue:
- Trailer hitches (p. 21)
