GRANIT Parabolic spring
Part no.: 22026-87-29-00
Further information
- Form:
- 8J
- No. of leaves:
- 3
- Blade width (mm):
- 100
- LV (mm):
- 874
- LH (mm):
- 874
- Assembly thickness (mm):
- 147
- Description:
- Anhängerfeder
- Leaf thickness (mm):
- 3/46 mm
- To fit:
- Strautmann
- Spring length (mm):
- 1748
- Additional information:
- je 1 Endloch an 3.Lage
- Flexibility / cranking (mm):
- 70 / -
- Bush Ø inner front (mm):
- -
- Bush Ø inner rear (mm):
- -
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 130,00 kg
- Catalogue:
- Trailer and chassis parts (p. 115)

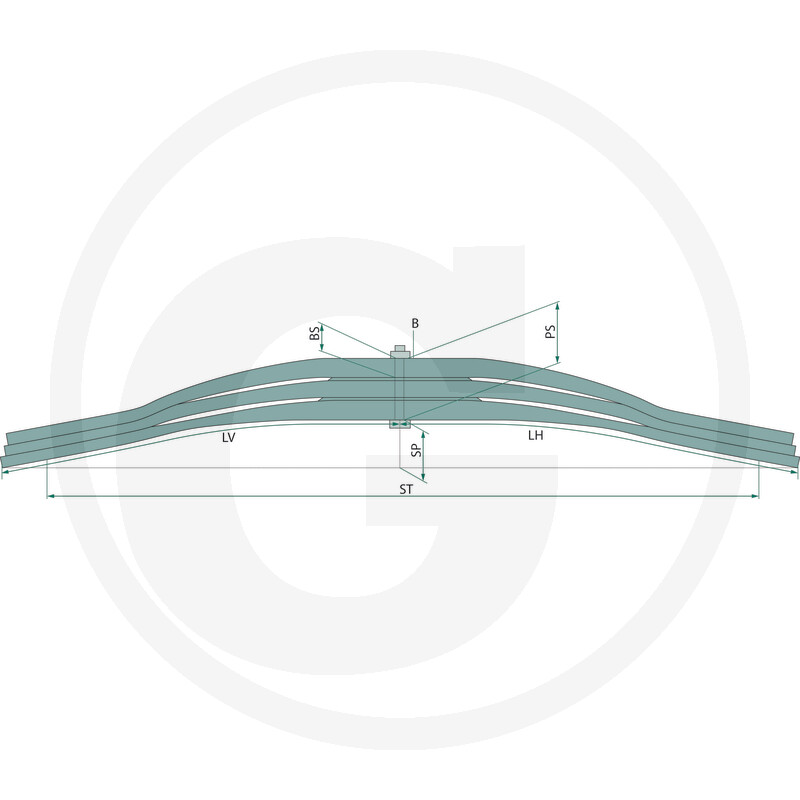

B = leaf width, measured around the centre bolt, spring bolt
LV = length front, measured on the steel
LH = length rear, measured on the steel
PS = assembly thickness, measured at the centre bolt, spring bolt
BS = leaf thickness, measured at the centre bolt, spring bolt
SP = flexibility, when new and unloaded
ST = support length, space between support points in the spring seats
FB = spring bush, inner diameter
LV = length front, measured on the steel
LH = length rear, measured on the steel
PS = assembly thickness, measured at the centre bolt, spring bolt
BS = leaf thickness, measured at the centre bolt, spring bolt
SP = flexibility, when new and unloaded
ST = support length, space between support points in the spring seats
FB = spring bush, inner diameter
