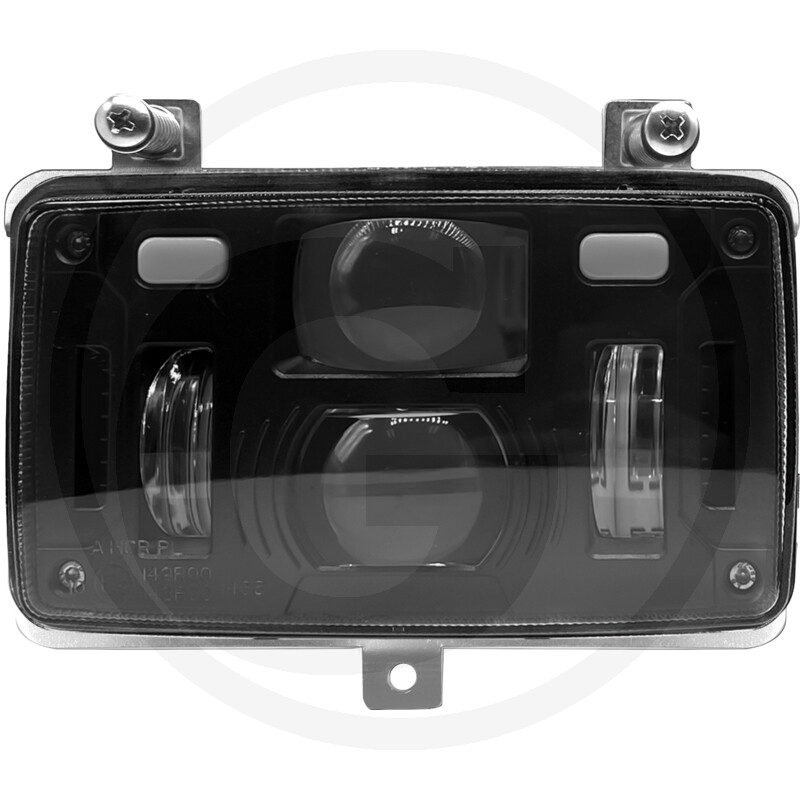

GRANIT LED main headlight

Further information

Nominal voltage (V):

12 / 24

Voltage range (V):

10 - 30

Bulb:

LED

Bulbs included:

Yes

Light function:

Full beam, dipped beam, position light

Dimensions W x H x D (mm):

155 x 92 x 82

Connection:

H4 connector

Material:

Aluminium housing, polycarbonate diffusing lens

Colour:

Black

Form:

Rectangular

Technical data:

Current:

Full beam/dipped beam:
[email protected] / 1.83A
[email protected] / 0.92A
Position light:
[email protected]
[email protected]

Depth (mm):

92

Protection class:

IP69K

No. of LEDs:

9

Cable length (mm):

180

Test mark:

R148, R149

Power consumption (W):

H: 55 W
L: 30 W
P: 2 W

Type:

Flush mounting

Additional information:

Luminous flux:
Theoretical:
Full beam: 4000 lm
Dipped beam: 2400 lm

Effective:
Full beam: 2500 lm
Dipped beam: 1650 lm

EMC:

CISPR 25 class 3

Light colour (K):

6.000

Operating temperature (°C):

-40 / +50°C

Mounting position:

Base/side/hanging/rear mounting

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

960 g

EAN codes:

4059139550203
