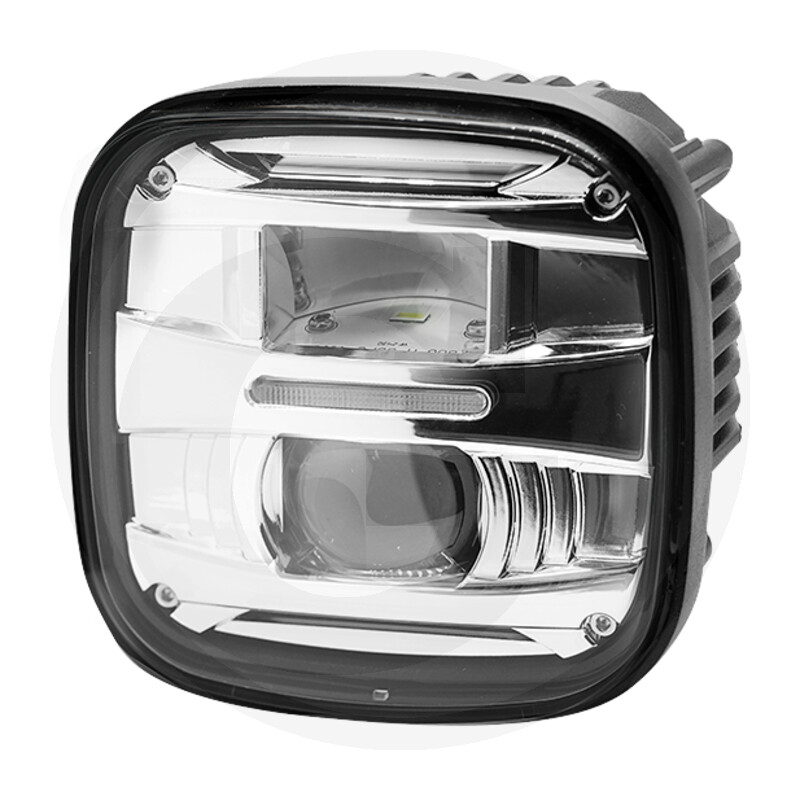

GRANIT LED main headlight

Further information

Nominal voltage (V):

12 / 24

Voltage range (V):

10 - 30

Bulb:

LED

Bulbs included:

Yes

Light function:

Full beam, dipped beam, parking light

Dimensions W x H x D (mm):

126 x 126 x 81

Connection:

H4 connector

Cable length (m):

0.18

Material:

Polycarbonate

Form:

Square

Protection class:

IP69K

Housing material:

Aluminium

Test mark:

ECE R148/R149

Additional information:

Power consumption:
Full beam: 50 W
Dipped beam: 25 W

Consumption:
Full beam: 30 W
Dipped beam: 18 W


Theoretical luminous flux
Full beam: 4500 lm
Dipped beam: 2250 lm

Effective luminous flux
Full beam: 2200~2500 lm
Dipped beam: 1200~1400 lm


Current (A) H/L:
[email protected]/1.66A
[email protected]/0.83A

P:
[email protected]
[email protected]

EMC:

CISPR 25 class 3

Light colour (K):

6.000

Operating temperature (°C):

-40°C / +80°C

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

812 g

EAN codes:

4059139549559

To be found in category:

ElectricsLightingMain headlightsLEDRectangular
