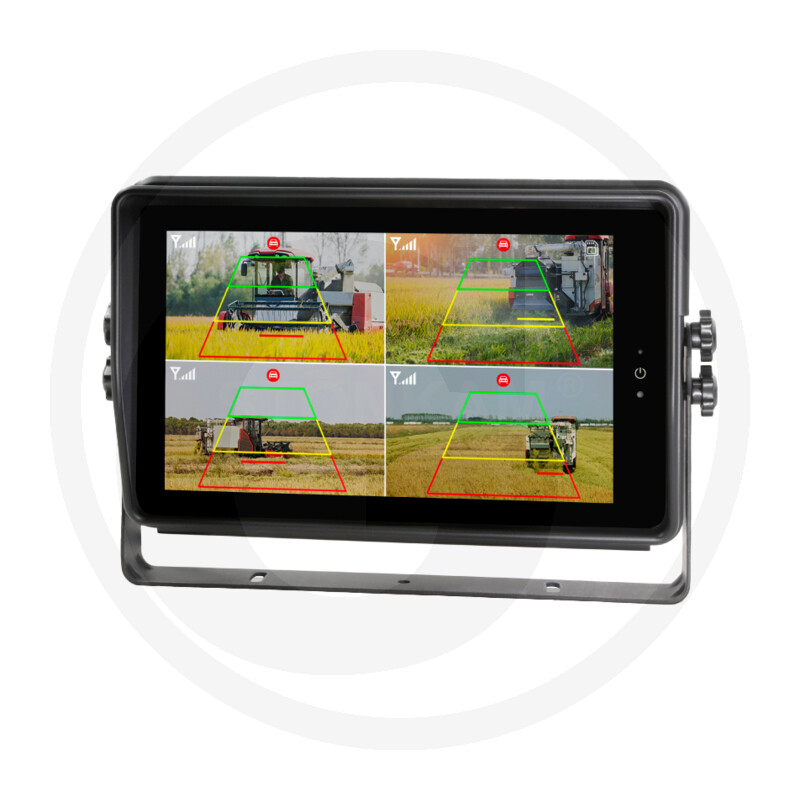

GRANIT 10” wireless HD AI quad-view monitor

Further information

Input voltage (V):

10 - 32

Technical data:

Deep learning AI for object detection

Frame rate: 2408 MHz - 2478 MHz (ISM band)

Delay: at least 130 ms

Power consumption: max. 10 W

Aspect ratio: 16:9

Contrast: 700:1

Integrated speaker

Range: up to 180 m

Protection class:

IP66

Type:

PAL/NTSC

Version:

10.1-inch display with intelligent pedestrian and vehicle detection and warning functions, wireless vehicle monitoring and video recording

Additional information:

Pedestrian and vehicle detection - the device can identify pedestrians and vehicles of different kinds including cyclists, e-bike riders and pedestrians, and provides pedestrian and vehicle detection and warning functions. The position and size of the detection areas (red, yellow and green) can be adjusted freely as there are four additional channels that can be controlled individually.

IP66 waterproof - works in all weather conditions, even rain and snow.

Recording function - 4-channel loop recording function, supports local playback recording, an optional Micro SD card can store up to 128G.

Transmission range up to 300 m - the open transmission range is up to 300 m and the signal is stable and interference-free. Even during high-speed or long-distance operation, the monitor displays the surrounding environment in real time, allowing you to drive or work more comfortably without interference, flickering, blurring or delays.

Operating temperature (°C):

-20 - +70ºC

Camera inputs:

4

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

2,93 kg

EAN codes:

4059139547173
