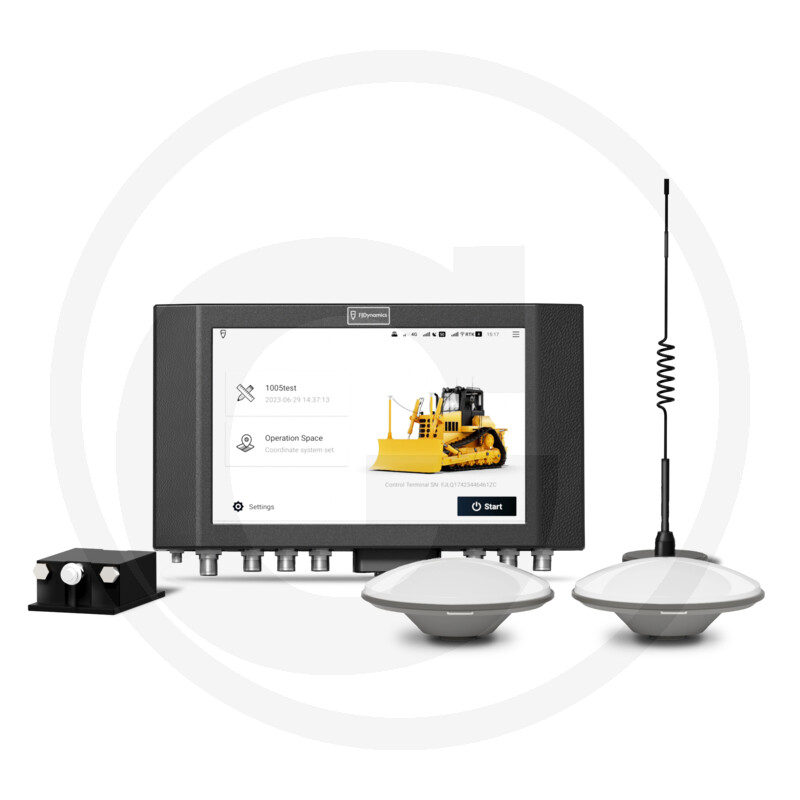

FJDynamics H39 3D crawler control system
Part no.: 19332908
Further information
- Included in delivery:
- Control terminal,
GNSS antenna,
4G antenna,
433 MHz antenna
Tilt sensor,
electronic control module (ECM),
switch block
Installation material - Technical data:
- Control terminal:
Dimensions: 300x190x43 mm
Operating temperature: -30°C to 70°C
Screen: 10.1" LED screen
IP protection class: IP65
Power consumption: 12-24V
Sensor:
Max. angular velocity: ≤400 °/s
IP protection class: IP67
Operating temperature: -40°C to 85°C
Accuracy of operation: 30 mm
Accuracy of course determination: 0.1° - Version:
- Automatic blade control,
visual 3D guidance in real time,
online support and OTA,
work with centimetre precision,
even ground,
task visualisation - Additional information:
- With 2 modes for the blade function and visual 3D guidance using real-time animation.
