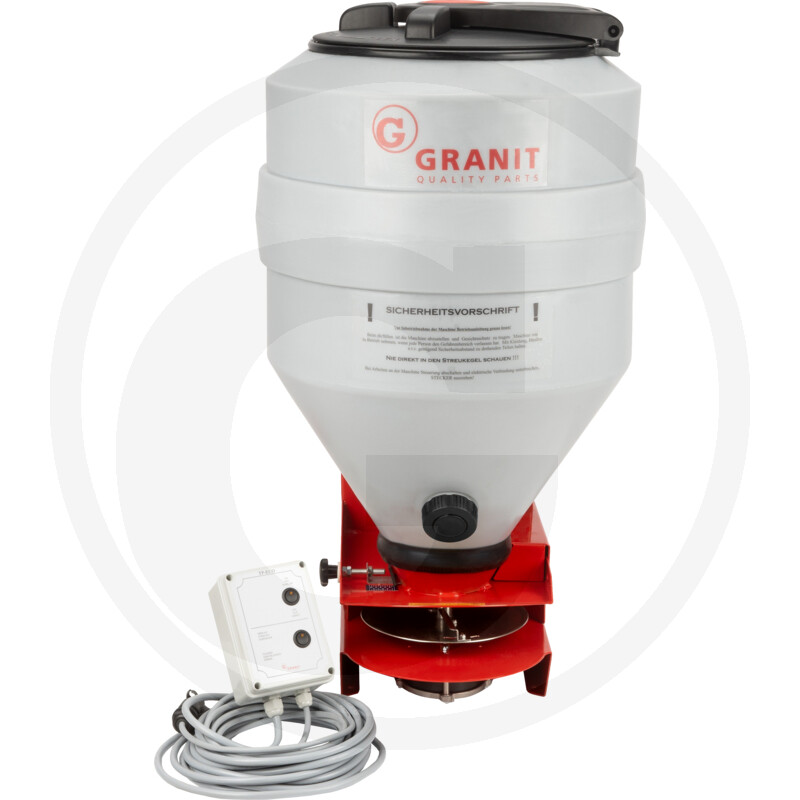

GRANIT Eco spreader

Further information

Included in delivery:

• 1 x control unit with cable to three-pin socket and cable to machine 7 m
• 1 x basic unit
• 1 x container

Technical data:

• Container with residual emptying and sealed lid with twist lock
• Quantity adjustment directly on the equipment with its own slide
• Limiting plate, side limitation and to the rear
• Agitator
• Easy disassembly of the container facilitates cleaning and maintenance
• Electric drive 12V-DC
• Slide motor 12V-DC/240N/2A/24W
• Spreader plate motor 12V-DC/3500 rpm/3.2-20A/240W
• Control unit in the cab with on/off switch and slide opening/closure, plus potentiometer for adjusting the speed of the spreader plate motor = working width adjustment

Areas of application:

• Large-scale spreading without additional tillage equipment
• Any seed with a grain size of 1 mm to approx. 6 mm (depends on the flowability of the seed and the desired application rate)
• Flexible set-up. Easy to change to other vehicles.
• Revegetation, catch crops, slug pellets. Inexpensive version, simple and flexible
• Mounting on tractors, sprayers, combine harvesters, quad bikes, etc.

Tank volume (l):

90

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

44,50 kg
