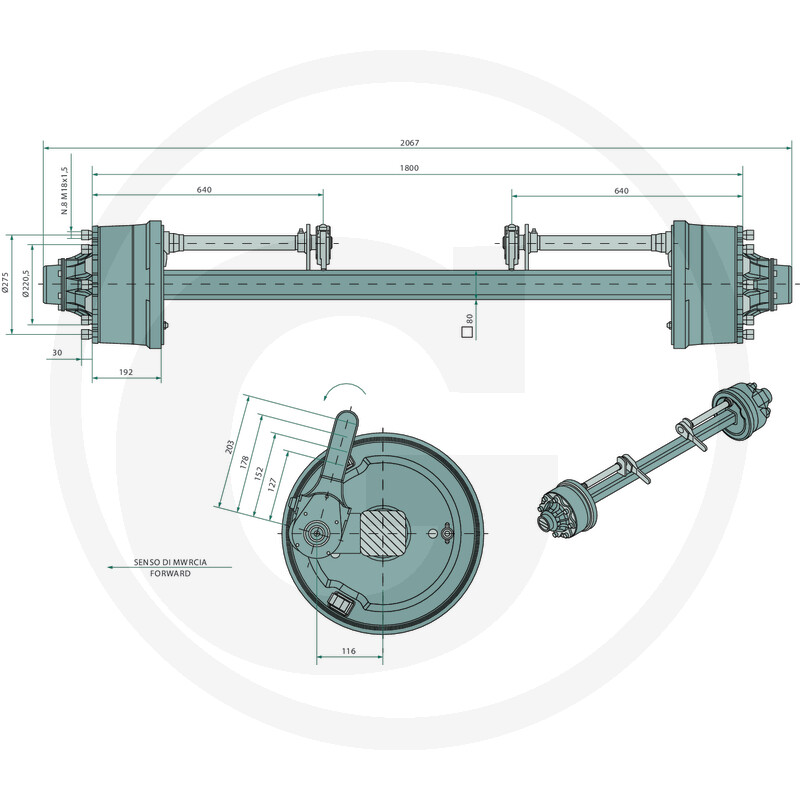

A.D.R Bremsachse

Further information

Axle body: B (mm):

□ 80

Track A (mm):

1800

Wheel attachment (wheel bolt/hub/PCD) D Ø C (mm):

8/220/275/M18x1,5

Brake size (mm):

300 x 135

Brake types:

314E -KF

Brake compensation BA:

ohne

Static axle load (kg) / single axle / 15.5 mph:

10900

Static axle load (kg) / twin axle / 15.5 mph:

10000

Static axle load (kg) / tandem / 15.5 mph:

9000

Static axle load (kg) / single axle / 25 mph:

10000

Static axle load (kg) / twin axle / 25 mph:

9200

Static axle load (kg) / tandem / 25 mph:

8500

Axle type:

RM8KF

Brake lever:

GSK

Technical axle load (braking load kg) at 15.5 mph:

10000

Technical axle load (braking load kg) at 25 mph:

9400

Technical axle load (brake load kg) at 60 km/h:

8000

Version:

ohne Grundplatten

Drum Ø (mm):

345

Wheel bearing set:

32212 / 32215

Static axle load (kg) / single axle / 60 km/h:

9500

Static axle load (kg) / tandem / 60 km/h:

7700

Static axle load (kg) / two-axle / 60 km/h:

8500

Base plate centre GM (mm):

520

Axle plate:

ohne

Weight:

157,25 kg

To be found in category:

Trailer and chassis partsAxle, chassis & suspensionAgricultural axlesBrake axles without automatic reverse mechanism
