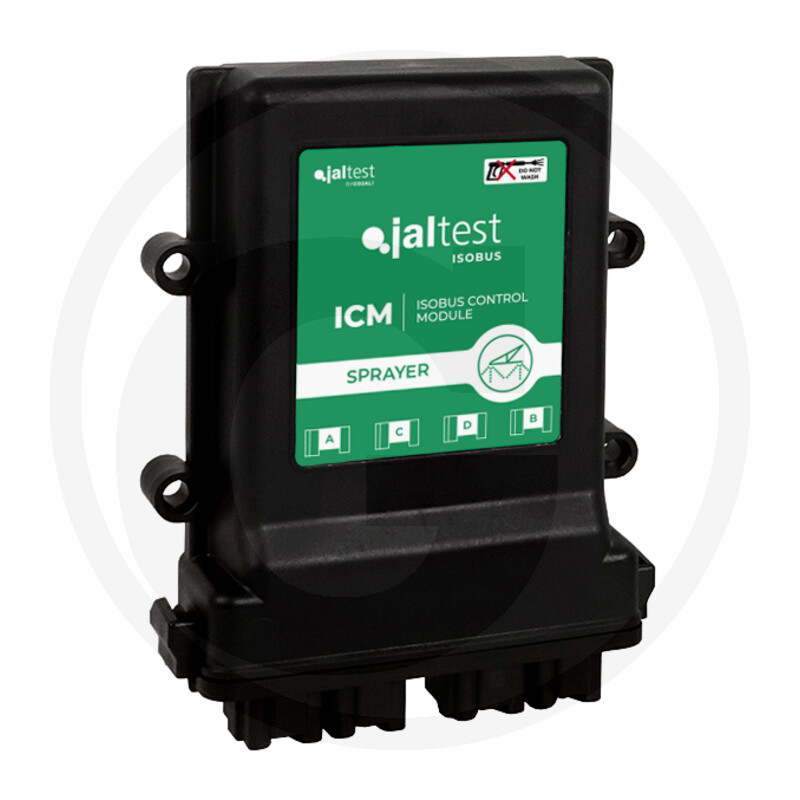

Jaltest ICM ECU - field sprayer

Further information

Reference no.:

85001001

Version:

Jaltest ICM ECU - field sprayer

Additional information:

The Jaltest ICM Sprayer is the solution that enables every sprayer to be equipped with ISOBUS technology, and thereby benefit from all the advantages of this technology:

- Compatibility with ISOBUS terminals
- Control of up to 17 shut-off valves with a single control unit
- Automatic boom section control (TC-SC). Prevents overlaps and applications outside the field, which helps to save product
- Compatibility with all shut-off valve manufacturers: Arag, Teejet, Geoline, Hardi, Berthoud, Tecnoma, etc.
- Variable application using application maps (TC-GEO)

- Control of up to 20 hydraulic functions. Controls various functions via the hydraulic system:
- Folding, unfolding, lifting, tilting, locking linkages, etc.
- Sensor control. The system monitors and manages various sensors: pressure, wheel speed, flow rate, tank level, etc.
- Control via pressure sensor, flow meter or both
- Automatic spray boom height control
- Control types: throttling and bypass
- Output proportional to driving speed. The system adjusts the volume flow of the product to the driving speed of the machine

Weight:

820 g

To be found in category:

ElectricsPrecision farmingJaltestModules
