Continental Vacupress SE 050 mm hose, metre
Meterware
Part no.: 12534573
Further information
- Inner Ø (mm):
- 50
- Inner Ø (inches):
- 2"
- Outer Ø (mm):
- 64
- Working pressure (bar):
- 10
- Burst pressure (bar):
- 36
- Length (m):
- Meterware
- Bending radius (mm):
- 150
- Vacuum (bar):
- 0,9
- Wall thickness (mm):
- 7
- Temperature range (°C):
- -25 °C - +60 °C
- Hose type:
- Spiral hose
- Food safe:
- Yes
- Roll length (m):
- 30
- Wire Ø (mm):
- 1,6
- Weight (kg/m):
- 1,6
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 62,50 kg

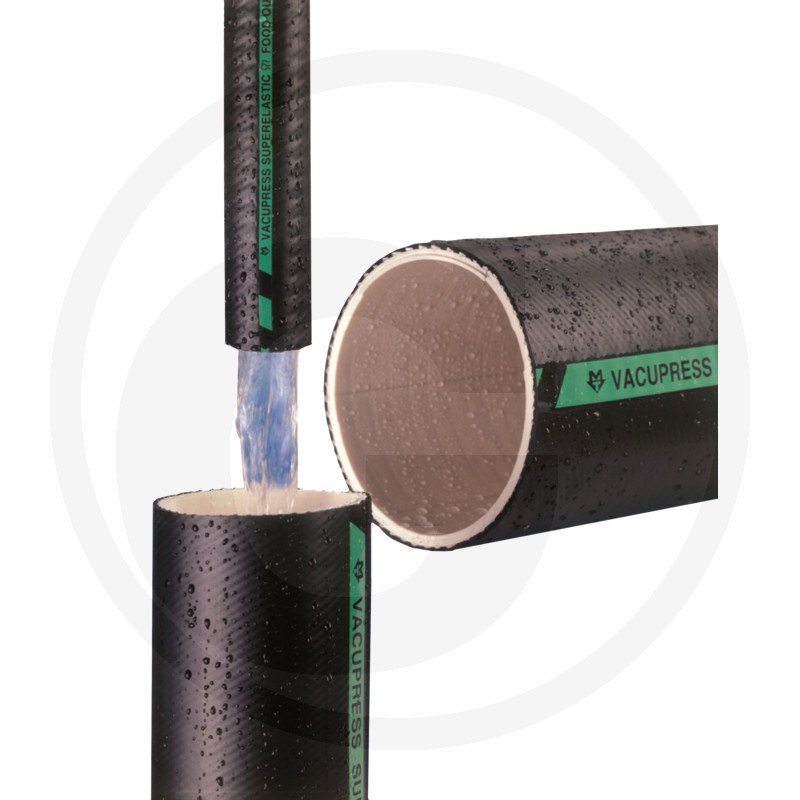

Made of soft double-layer PVC with steel wire spiral embedded in the first layer and polyester yarn inlay between the first and second layers. White interior, black exterior, green marking. Diameter 76 - 102 mm, with copper wire in the outer hose for antistatic conductivity after earthing.
Properties: Extremely flexible, even at low temperatures, -25 °C to +60 °C, smooth interior and exterior. Resistant to weather and abrasion. Abrasion resistance according to ISO 4649: <160 mm³ < 160.
Application: Universal hose for conveying and extracting liquid foodstuffs, alcohol up to 28%, suitable for irrigation systems, loading and unloading large containers, industrial plants, etc.
Suitable for contact with liquid foodstuffs type A-B-C in accordance with 1935/2004 CE. Tested at 40 °C for 24 hours.
Sold by the metre
Properties: Extremely flexible, even at low temperatures, -25 °C to +60 °C, smooth interior and exterior. Resistant to weather and abrasion. Abrasion resistance according to ISO 4649: <160 mm³ < 160.
Application: Universal hose for conveying and extracting liquid foodstuffs, alcohol up to 28%, suitable for irrigation systems, loading and unloading large containers, industrial plants, etc.
Suitable for contact with liquid foodstuffs type A-B-C in accordance with 1935/2004 CE. Tested at 40 °C for 24 hours.
Sold by the metre
