Comer Gearbox

Further information

Torque (Nm):

540 rpm: n1 = 820, n2 = 1984

Power max. (PS/kW):

65 / 47,8

Transmission:

2,42:1

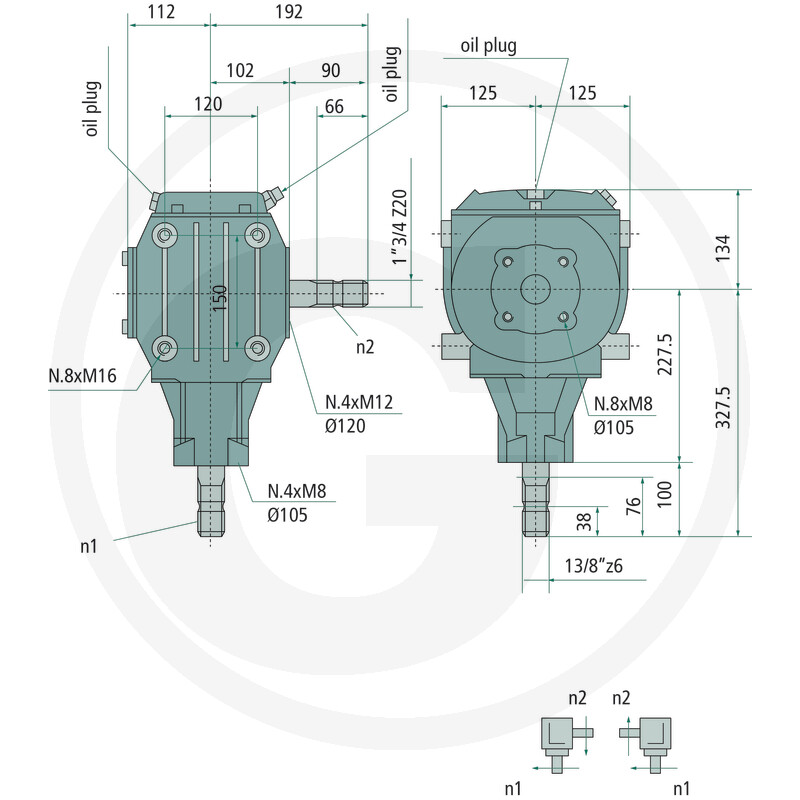

Hole spacing (mm):

120 x 150

Application:

General drives in agricultural, construction and forestry technology

Version:

Cast iron housing
Bevel gear pairing straight-toothed and case-hardened
Speed limit: n = 3000 rpm.
Oil filling quantity: approx. 3.1 litres
Oil type: SAE90 EP
Supplied without oil

n1 (1/min.):

540

n2 (1/min.):

222

Maintenance:

1st oil change after 50 operating hours, then at intervals of 500-800 hours, or once a year
