GRANIT Gearbox
Part no.: 12436661
Further information
- Torque (Nm):
- 540 rpm: n1 = 1059, n2 = 1059
- Power max. (PS/kW):
- 84 / 61,8
- Transmission:
- 1:1

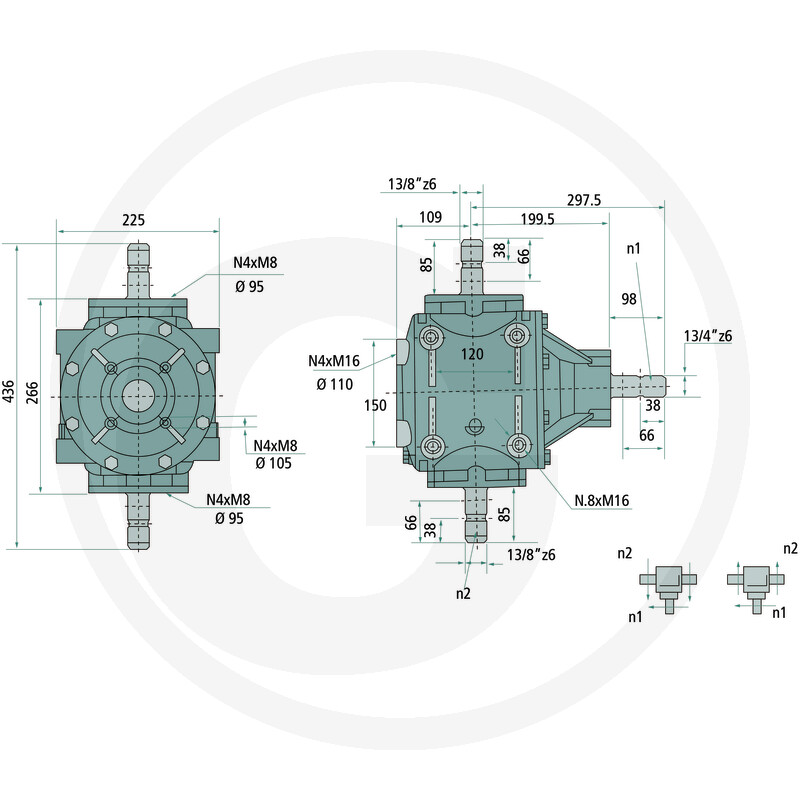

- Hole spacing (mm):
- 120 x 150
- Application:
- Mulchers, general drives in agricultural and forestry technology
- Version:
- Cast iron housing
Bevel gear pairing straight-toothed and case-hardened
Speed limit: n = 3000 rpm.
Oil filling quantity: approx. 2.5 litres
Oil type: SAE90 EP
Supplied without oil - n1 (1/min.):
- 540
- n2 (1/min.):
- 540
- Maintenance:
- 1st oil change after 50 operating hours, then at intervals of 500-800 hours, or once a year
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- To be found in category:
- PTO shafts & drive technologyComer gearsBevel gearboxGrey cast iron housingBevel gearbox T-292
Special item: cannot be returned or cancelled. Additional shipping costs may be incurred. Delivery time subject to availability from the supplier.
