Comer Gearbox

Further information

Torque (Nm):

540 rpm: n1 = 650, n2 = 1008

Power max. (PS/kW):

50 / 36,8

Transmission:

1,6:1

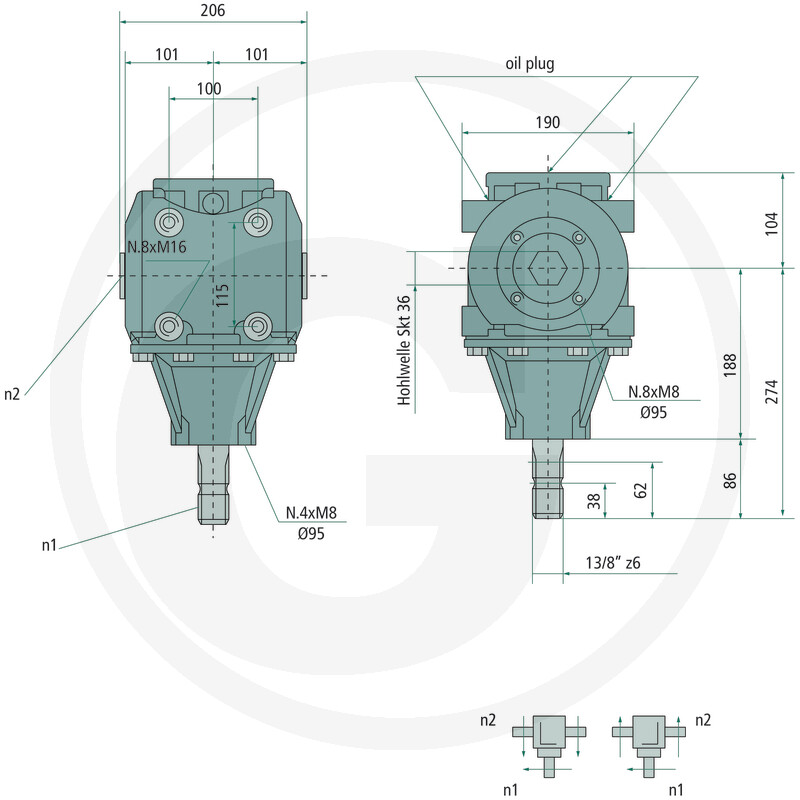

Hole spacing (mm):

100 x 115

Application:

Mulchers, low-speed drives in agricultural and forestry technology

Version:

Cast iron housing
Bevel gear pairing straight-toothed and case-hardened
Speed limit: n = 1800 rpm.
Oil filling quantity: approx. 1.7 litres
Oil type: SAE90 EP
Supplied without oil

n1 (1/min.):

540

n2 (1/min.):

337

Maintenance:

1st oil change after 50 operating hours, then at intervals of 500-800 hours, or once a year
