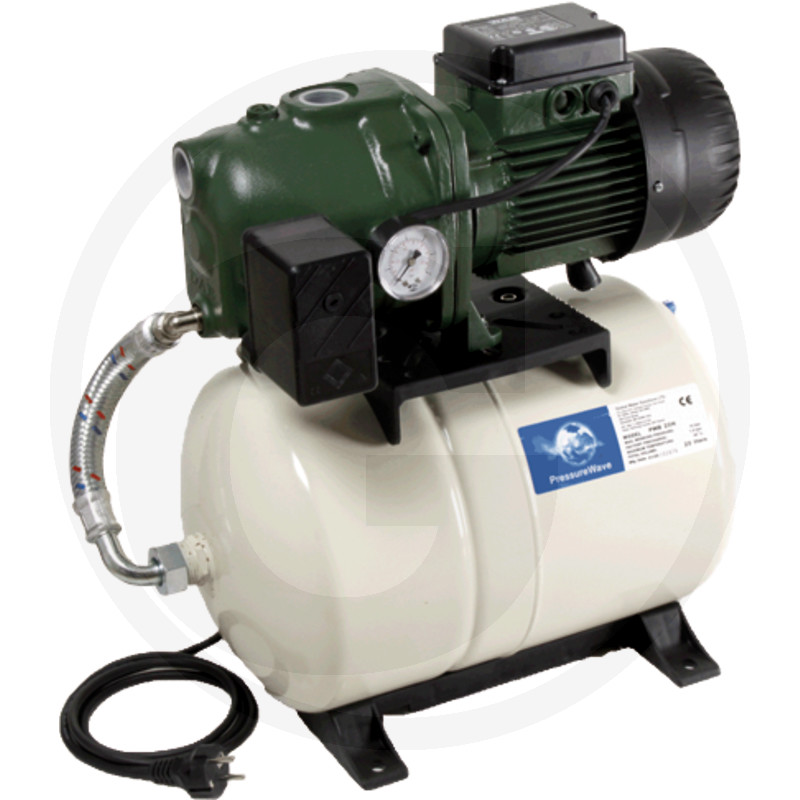

DAB Hauswasserwerk
Aquajet 82M-G
Part no.: 12349777
Further information
- Flow rate max. (l/h):
- 3600
- Delivery height max. (m):
- 47
- Max. suction height (m):
- 8
- Pressure (bar):
- 4,7
- Intake temperature max.:
- 35°C
- Tank size (litres):
- 20
- Connection:
- 1"
- Engine:
- 230V /50 Hz - 850 W
- Cable length (m):
- 1,8
- Version:
- Pumpengehäuse Guss
- Weight:
- 18,86 kg
- To be found in category:
- Irrigation technologyPumpsDAB domestic water pumps
Self-priming domestic water pumps.
Particularly suitable for use in the home, in small private, agricultural and industrial installations, in washing installations and for non-professional applications.
The liquid to be pumped should be clean, free of solids and abrasive particles, and chemically neutral. It should not be viscous, abrasive or crystallised.
Installation type: fixed, in horizontal position
Diaphragm tank:
• 2-component polyurethane coating on epoxy primer
• Internal coating made of pure polypropylene • Single diaphragm construction
Pump unit:
• Impeller, diffuser and Venturi tube made of technopolymer
• Seal retaining washer and scraper rings made of stainless steel
• Mechanical seal made of carbon / ceramic
• Pressure switch
• Pressure gauge
Particularly suitable for use in the home, in small private, agricultural and industrial installations, in washing installations and for non-professional applications.
The liquid to be pumped should be clean, free of solids and abrasive particles, and chemically neutral. It should not be viscous, abrasive or crystallised.
Installation type: fixed, in horizontal position
Diaphragm tank:
• 2-component polyurethane coating on epoxy primer
• Internal coating made of pure polypropylene • Single diaphragm construction
Pump unit:
• Impeller, diffuser and Venturi tube made of technopolymer
• Seal retaining washer and scraper rings made of stainless steel
• Mechanical seal made of carbon / ceramic
• Pressure switch
• Pressure gauge
