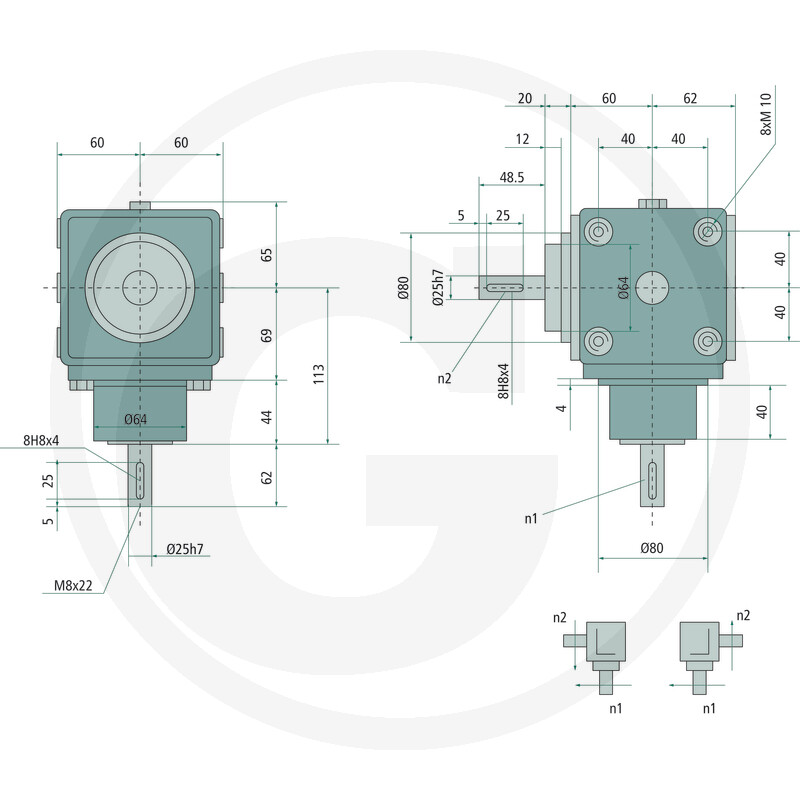

Comer Gearbox

Further information

Torque (Nm):

540 rpm: n1 = 189, n2 = 189

Power max. (PS/kW):

540 1/min.: 15 / 11

Transmission:

1:1

Hole spacing (mm):

80

Application:

General drives in garden and agricultural technology

Version:

Cast iron housing
Bevel gear pairing straight-toothed and case-hardened
Speed limit: n = 3000 rpm.
Oil filling quantity: approx. 0.4 litres
Oil type: SAE90 EP
Supplied without oil

n1 (1/min.):

540

n2 (1/min.):

540

Maintenance:

1st oil change after 50 operating hours, then at intervals of 500-800 hours
