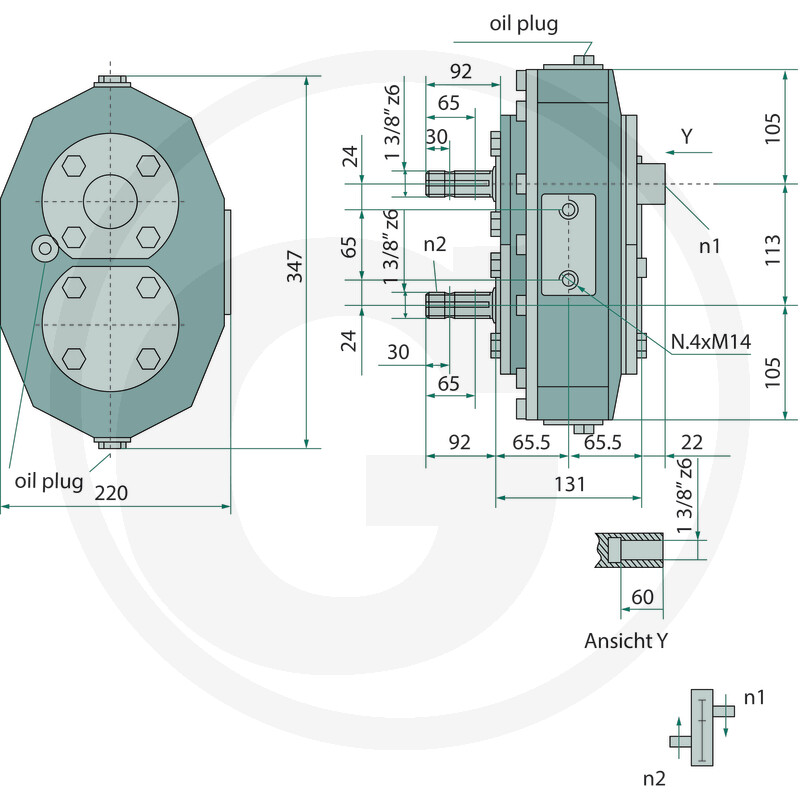

Comer Gearbox

Further information

Torque (Nm):

540 rpm: n1 = 1071, n2 = 1071

Application:

Reversing gearbox for front and rear operation
Agitator drives
General drives in agriculture, construction and forestry equipment
Axle spacing 113 mm

Version:

Cast iron housing
Gearing case hardened
Speed limit: 3000 rpm
Oil filling quantity: approx. 0.8 litres
Oil type: SAE90 EP
Supplied without oil
A torque arm should be considered as an anti-twist device

Power max. (PS/kW):

85 / 62,6

Transmission:

1:1

n1 (1/min.):

540

n2 (1/min.):

540

Maintenance:

1st oil change after 50 operating hours, then at intervals of 500-800 hours, or once a year

Weight:

28,00 kg
