Comer Gearbox

Further information

Torque (Nm):

540 rpm: n1 = 325, n2 = 945

Power max. (PS/kW):

25 / 18,4

Transmission:

3:1

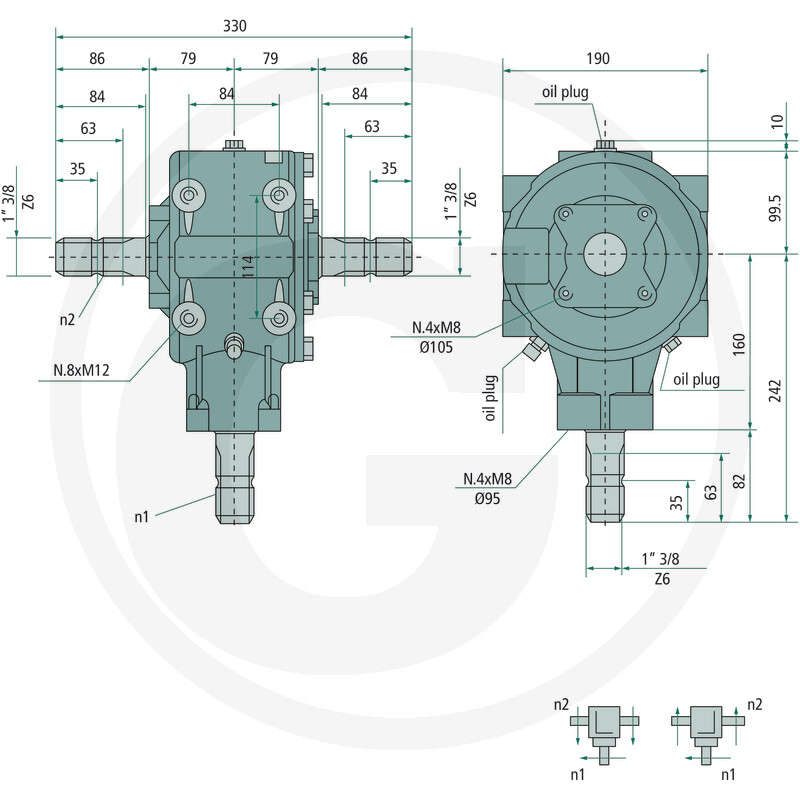

Hole spacing (mm):

84 x 114

Application:

Sweepers, general drives in agricultural and forestry technology

Version:

Cast iron housing
Bevel gear pairing straight-toothed and case-hardened
Speed limit: n = 3000 rpm.
Oil filling quantity: approx. 1.1 litres
Oil type: SAE90 EP
Supplied without oil

n1 (1/min.):

540

n2 (1/min.):

180

Maintenance:

1st oil change after 50 operating hours, then at intervals of 500-800 hours, or once a year

Weight:

19,14 kg
