Comer Gearbox
Part no.: 12334942
Further information
- Torque (Nm):
- 540 rpm: n1 = 1071, n2 = 1071
- Application:
- Displacement gearbox for front and rear operation with the same direction of rotation
General drives in agricultural, construction and forestry technology

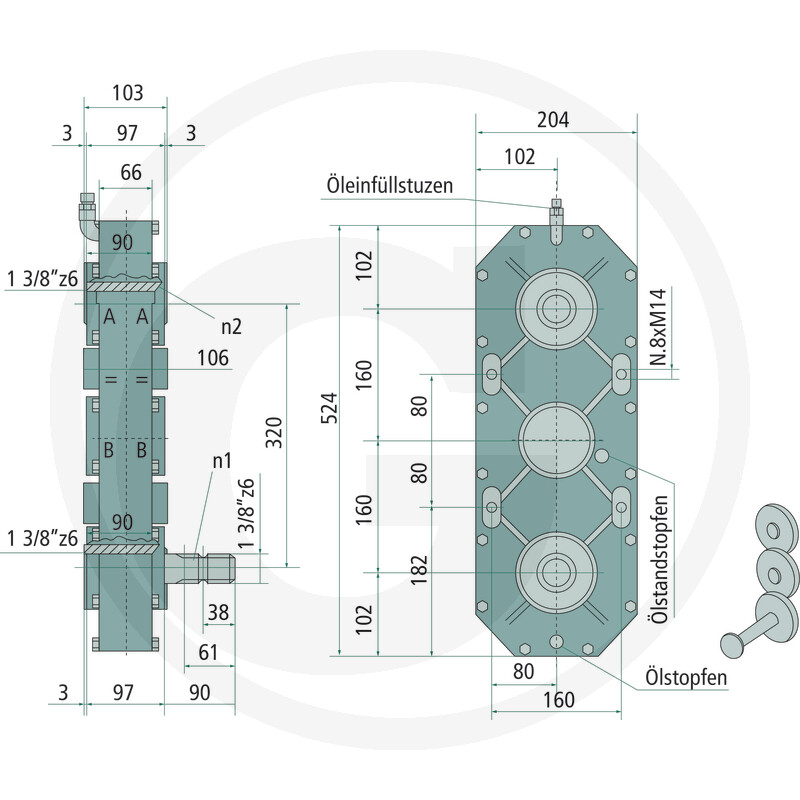

Axle spacing 320 mm - Version:
- Cast iron housing
Gearing case hardened
Speed limit: 2800 rpm
Oil filling quantity: approx. 1.5 litres
Oil type: SAE90 EP
Supplied without oil
A torque arm should be considered as an anti-twist device - Power max. (PS/kW):
- 540 1/min: 85 / 62,6
- Transmission:
- 1:1
- n1 (1/min.):
- 540
- n2 (1/min.):
- 540
- Maintenance:
- 1st oil change after 50 operating hours, then at intervals of 500-800 hours, or once a year
- Weight:
- 37,80 kg
