Comer Gearbox

Further information

Torque (Nm):

540 rpm: n1 = 693, n2 = 693

Power max. (PS/kW):

55 / 40,5

Transmission:

1:1

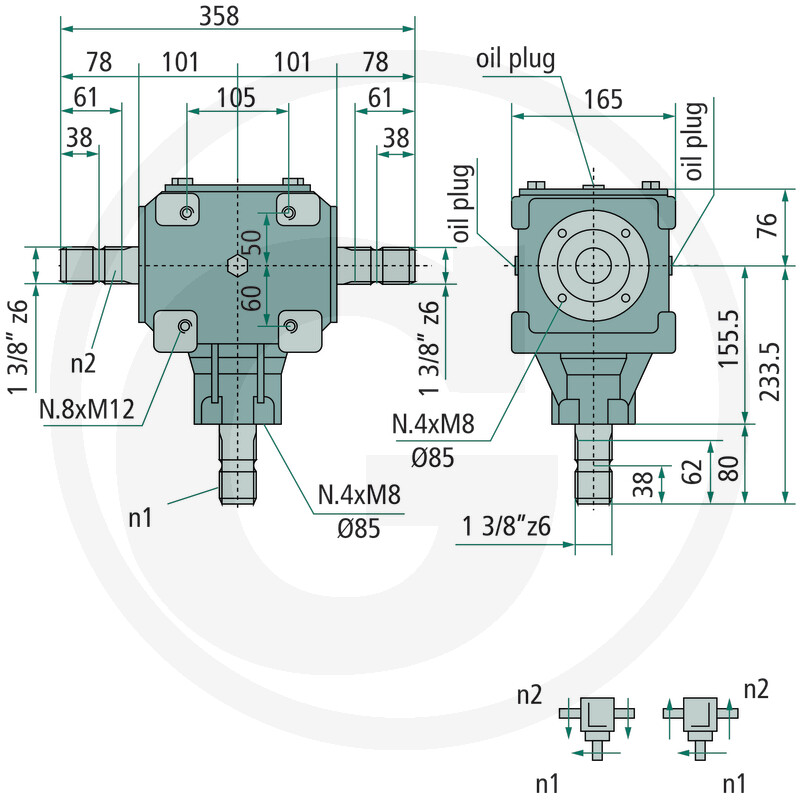

Hole spacing (mm):

105 x 110

Application:

Sweepers, general drives in agricultural and forestry technology

Version:

Cast iron housing
Bevel gear pairing straight-toothed and case-hardened
Speed limit: n = 3000 rpm.
Oil filling quantity: approx. 1.2 litres
Oil type: SAE90 EP
Supplied without oil

n1 (1/min.):

540

n2 (1/min.):

540

Maintenance:

1st oil change after 50 operating hours, then at intervals of 500-800 hours, or once a year
